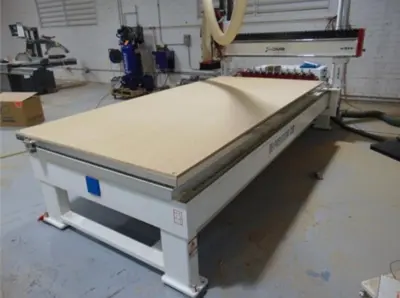

Used Freedom 10 3-axis 5' X 10' moving gantry CNC router, new 2022

Description

Used Freedom 10 3-axis 5' X 10' moving gantry CNC router;
new 2022-low- low hours

CUSTOMER SELECTED OPTIONS provided by previous owner

PRODUCT

C-Axis for aggregates column.
Option includes servo motor, servo amplifier, and mounted dust hood that will accommodate the motor mount and main C-axis aggregate tool holder. To include aggregate column.$16,500.00

Tech PowerTech 300 – 10.8 kW @ 12,000 RPM (S1), 12.5 torque, 12,000 RPM (S6), 380V ISO 30 Mono ATC air-cooled spindle with a max speed of 24,000 RPM. Includes dust nose.$10,995.00

MATERIAL THICKNESS SENSOR
For applications where the thickness of the material varies. Allows you to set the zero to your material rather than the tool.$434.39

TOOLING PACKAGE 10-piece tooling package including 10 pcs, 19030 ER32 collet holders with cover, nut, and tightening tool. Collet sizes included: 1 pc. 19mm, 2 pcs. 11mm, 3 pcs. 3/8”, 3 pcs. 1/2”, and 1 pc. 3/4”.$2,000.00

AUTOMATIC TOOL LENGTH SENSOR Automatic tool height sensor.$440.00

10-POSITION TOOL CHANGE RACK10- $5,732.00
ALUMINUM VACUUM TABLE
Table featuring a vacuum plate table (T-slots with 14mm upper groove) where gasket nets are integrated into vacuum plug holes. Plug holes to supply vacuum in flat material or to anchor down using 3/8” silicon inserts. Gasket supplied. Machine to have aluminum table .$10,914.0

Pneumatic pop-up pins for locating/referencing materials (set of four) are located on the left side of the table.Unit Price: $1,760.00

Note: Pop-up pins can be added only to machines with a 12-Z axis. When selected, the table must be routed to reduce the 12-Z axis clearance.

Dust collection duct and boom-style support package for 5’ x 10’ models. Dust collector is not included.Unit Price: $900.00
On-table rotary positioning axis. Table-mounted chuck and insert.…………$4250

Dust Collector -included

Available upon request • Becker 15hp VTLF vacuum pump, 2,400 DCFM, 24” Hg, 208/230/480 Volt, 3-phase, 60Hz, oil-less rotary vane vacuum pump. Includes a 230-volt starter (contact factory if 460-volt starter is required). Client responsible for electrical connection and plumbing to the machine. $13,942.00
