Used STARVIEW IF-2540 | Single Station Thermoformers

Description

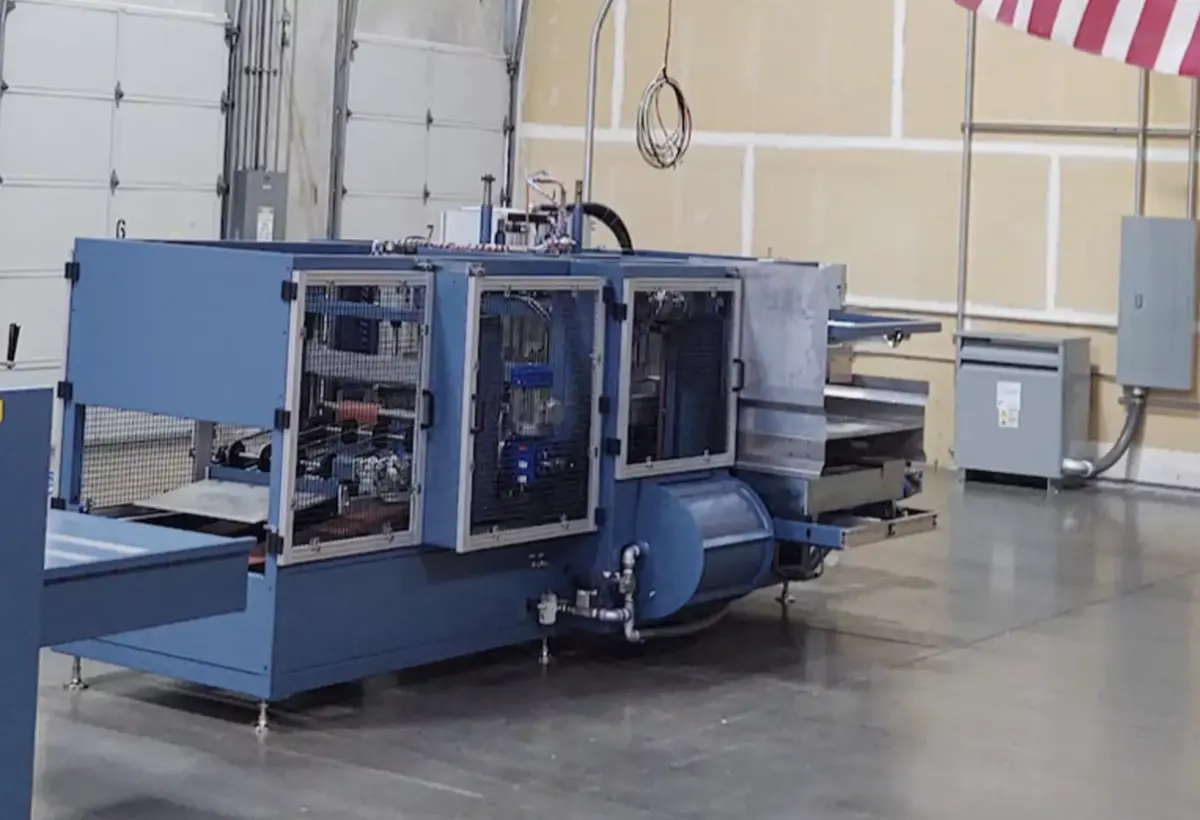

The Starview IF-2540 Automatic Vacuum Forming Machine has
- Digital control with color touch screen
- Top and bottom heaters, each with 15 individually adjustable heating zones, inline heaters
- Remote Access via Ethernet and Wifi router.
- 4 cooling blowers
- water cooled mold plate
- PLUG/ GRID assist
- Automated roll feeder
- Guillotine for automatic in-line cutting
- Automatic mold blow-off for finished parts release.

SPECS:
- 208-230V / 3 Phase / 80 Amps

- Pneumatic actuation of plug / grid
- 3 HP vacuum system
- 25" x 40" forming area
- Max film width: 27.5"
- 8" max platen stroke
- 226"W x 85"D x 85" H (approximate)
- 4,500 lb weight
