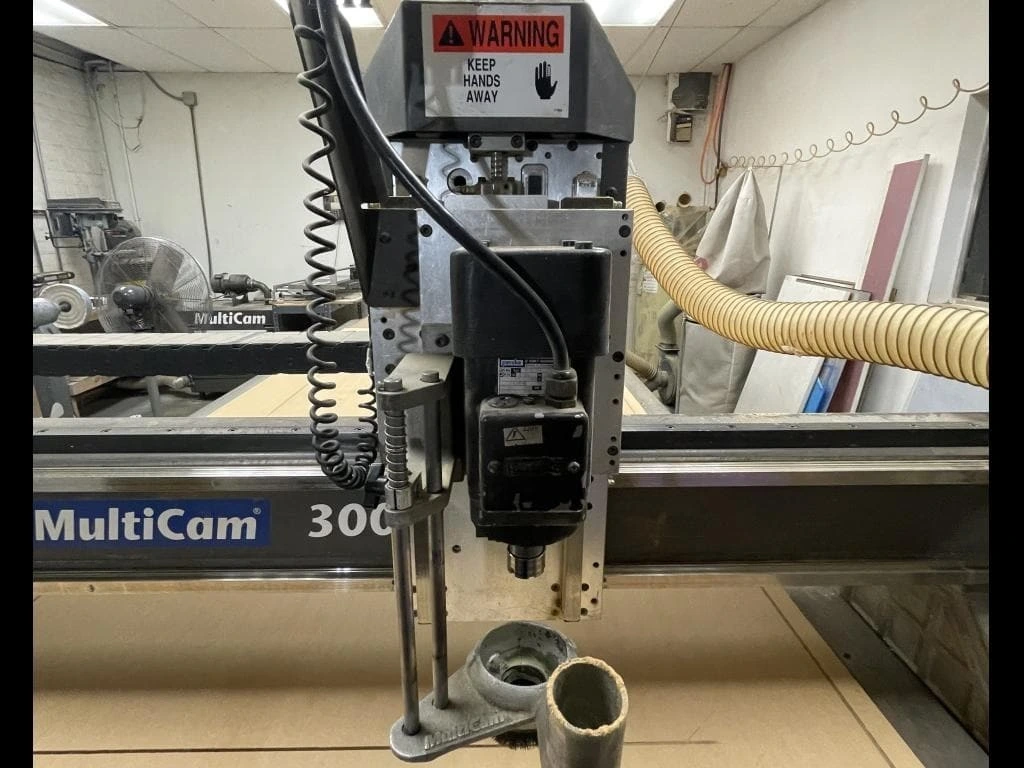

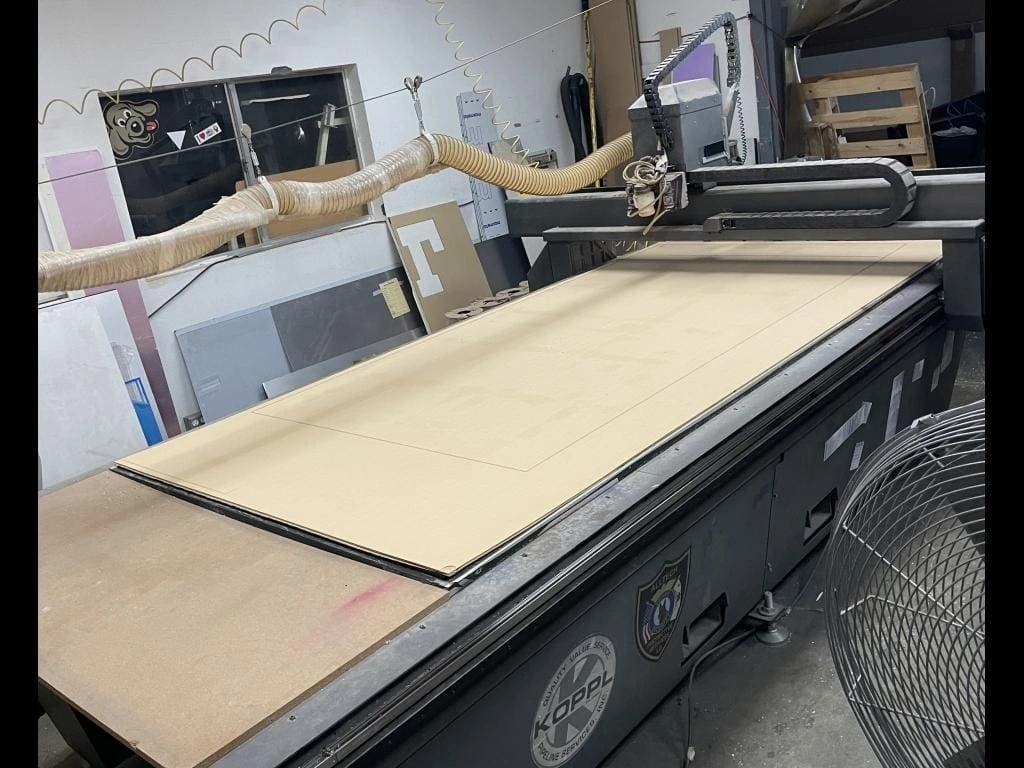

Used 2006 Multicam 3204-R CNC Router

Description

Table: 60×120 Table
Motor: 4.0 HP Perske Spindle
Spindle Speed: 24,000 RPM
Z-Axis Clearance: 6″ – Optional 10″
Z-Axis Travel: 12″
Repeatability: +/- .001″
Positional Displacement Accuracy:+/- 0.005″
over 10 feet
Maximum Cutting Speed: 1,400 ipm *
Maximum Rapid Traverse: 2,500 ipm *
Drive System X and Y axis: Rack and Pinion
Drive System Z axis: Ball Screw
Standard Work Surface: 1″ Phenolic
Machine Weight: 5,170 lbs

Equipped With:
10 HP Positive Displacement Vacuum Hold Down System
4 Valved & Zoned Phenolic Grid Tabletop Automatic Misting/Lubrication system (for metal routing)
EnRoute 3 Plus Routing Tool Path Software Chip Vacuum Extraction System
