2009 BROWN C4600 THERMOFORMER AND T350 L TRIM PRESS
Have one to sell?
ConditionUsed
1 available
See attached video
C- 4600 thermoformerl
Maximum Mold Size (Width x Length): 50" x 50"
Maximum Coining Force:100 tons
6” DEPTH OF DRAW
Maximum Forming Pressure: 100 psi
Sheet Width: 53"
Oven: Four stops or five stops top and bottom
Air Consumption @ 80 psi†: 1.00 scfm

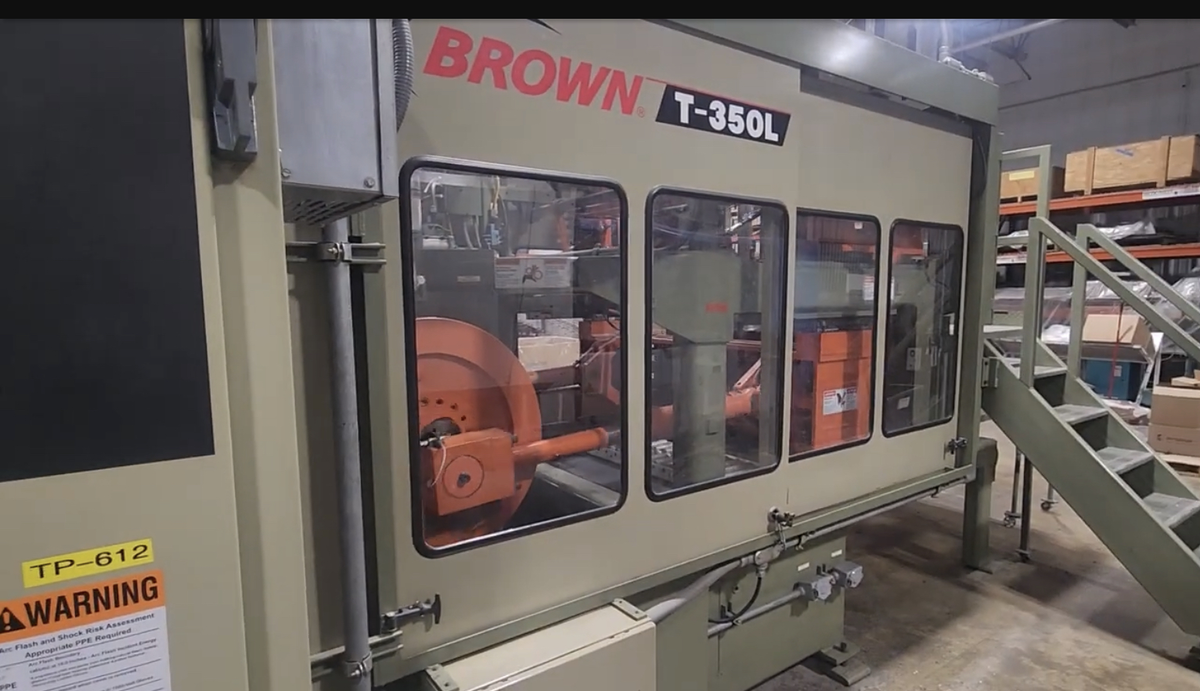

T350L. Trim Press
30 ton maximum compression,
16.25" x 50" (413mm x 1270mm) stationary platen opening,
18" x 72" stamping platen size,
4.5" (114mm) - 16.5" (419mm) stoke adjustment range,
53" (1346mm) maximum sheet width.
With controls, 480 volt
C- 4600 thermoformer
Maximum Mold Size (Width x Length): 50" x 50"
Maximum Coining Force:100 tons
6” DEPTH OF DRAW
Maximum Forming Pressure: 100 psi
Sheet Width: 53"
Oven: Four stops or five stops top and bottom
Air Consumption @ 80 psi†: 1.00 scfm
T350L. Trim Press
30 ton maximum compression,
16.25" x 50" (413mm x 1270mm) stationary platen opening,
18" x 72" stamping platen size,
4.5" (114mm) - 16.5" (419mm) stoke adjustment range,
53" (1346mm) maximum sheet width.
With controls, 480 volt
See attached video

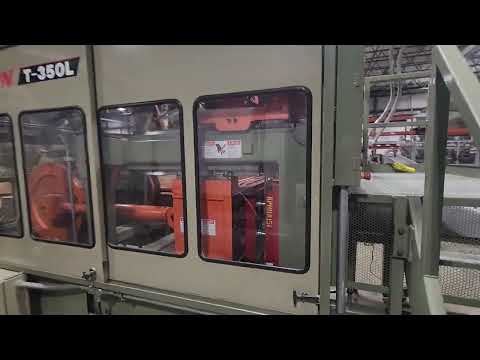

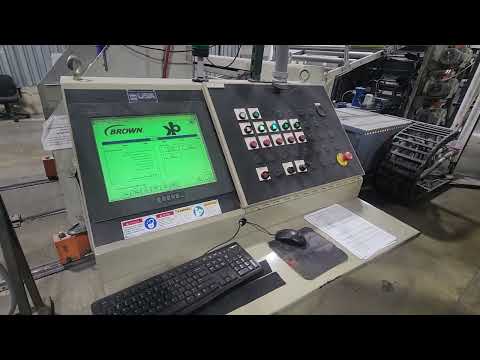

See video to view condition of equipment
