2004 Brown complete thermoforming line, CS 5500 (50x50)and 350 L Trimpress
Have one to sell?
ConditionUsed
1 available

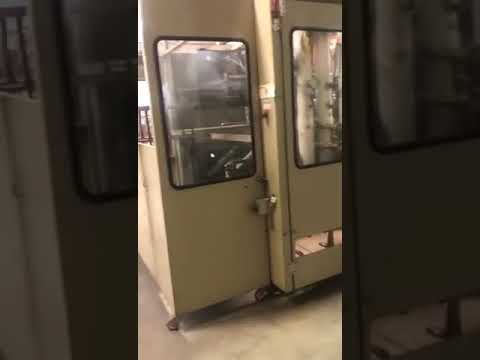

See attached video

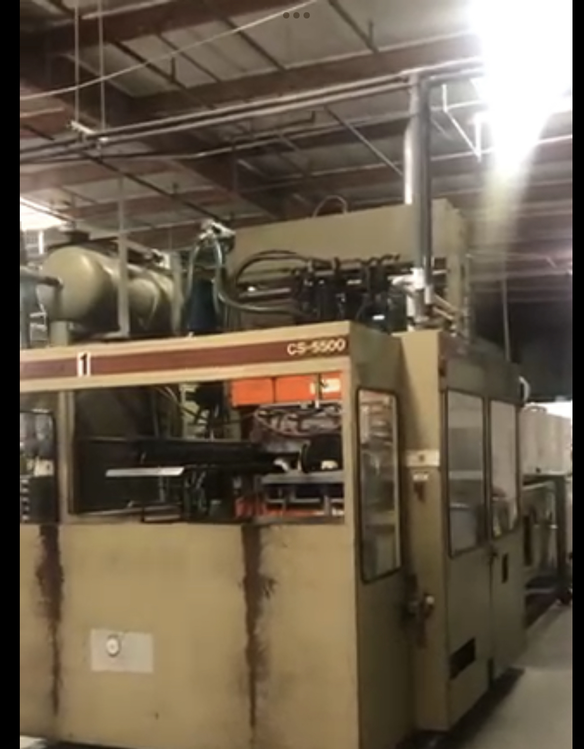

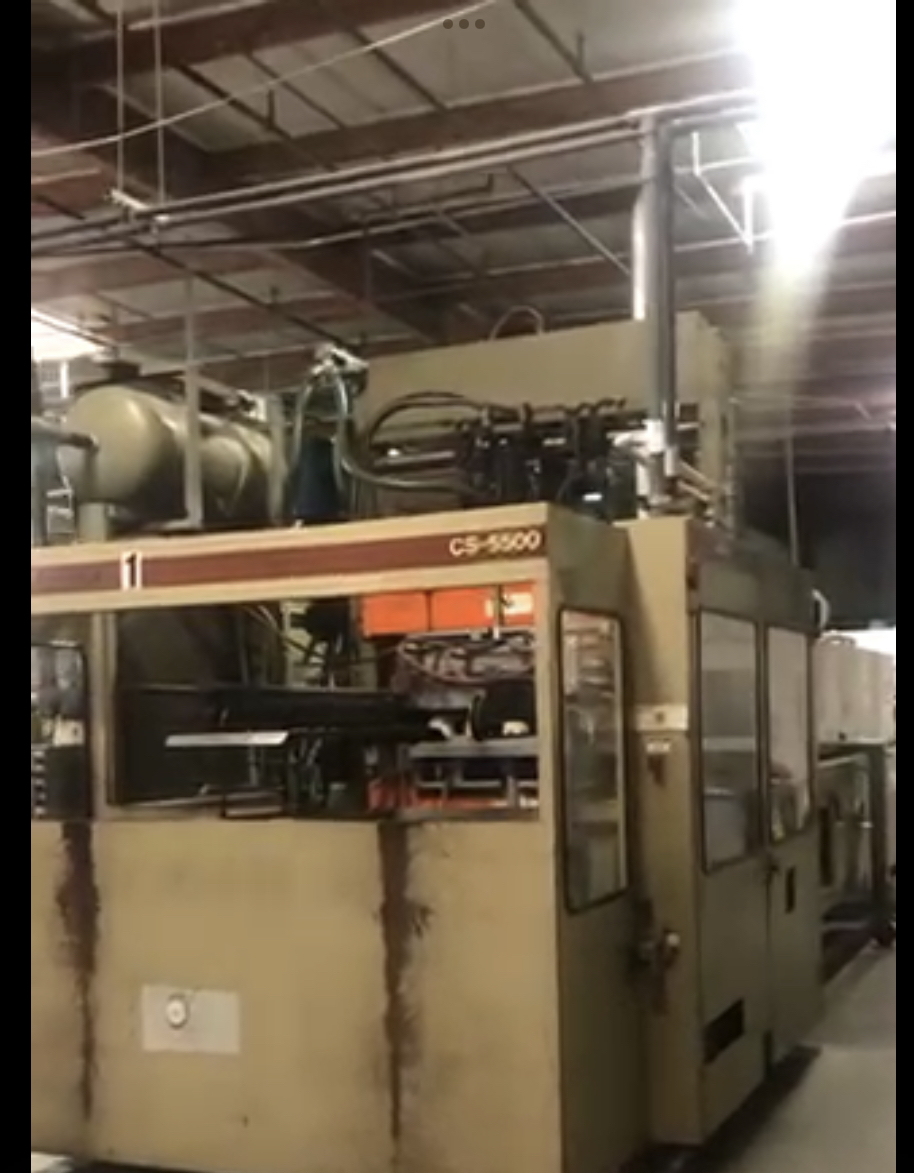

CS-5050 thermoformerl
Maximum Mold Size (Width x Length): 50" x 50"
Maximum Holding Force: 150 tons
Maximum Coining Force:100 tons
Platen Stroke - Top / Bottom*: 9.75" / 9.75" 248mm / 248mm
Maximum Forming Pressure: 100 psi
Sheet Width: 53"
Oven: Four stops or five stops top and bottom
Air Consumption @ 80 psi†: 1.00 scfm
T350L. Trim Press
30 ton maximum compression,
16.25" x 50" (413mm x 1270mm) stationary platen opening,
18" x 72" stamping platen size,
4.5" (114mm) - 16.5" (419mm) stoke adjustment range,
53" (1346mm) maximum sheet width.
With controls, 480 volt
CS-5050 thermoformerl
Maximum Mold Size (Width x Length): 50" x 50"
Maximum Holding Force: 150 tons
Maximum Coining Force:100 tons
Platen Stroke - Top / Bottom*: 9.75" / 9.75" 248mm / 248mm
Maximum Forming Pressure: 100 psi
Sheet Width: 53"
Oven: Four stops or five stops top and bottom
Air Consumption @ 80 psi†: 1.00 scfm
T350L. Trim Press
30 ton maximum compression,
16.25" x 50" (413mm x 1270mm) stationary platen opening,
18" x 72" stamping platen size,
4.5" (114mm) - 16.5" (419mm) stoke adjustment range,
53" (1346mm) maximum sheet width.
With controls, 480 volt
Currently under power running
