Description:

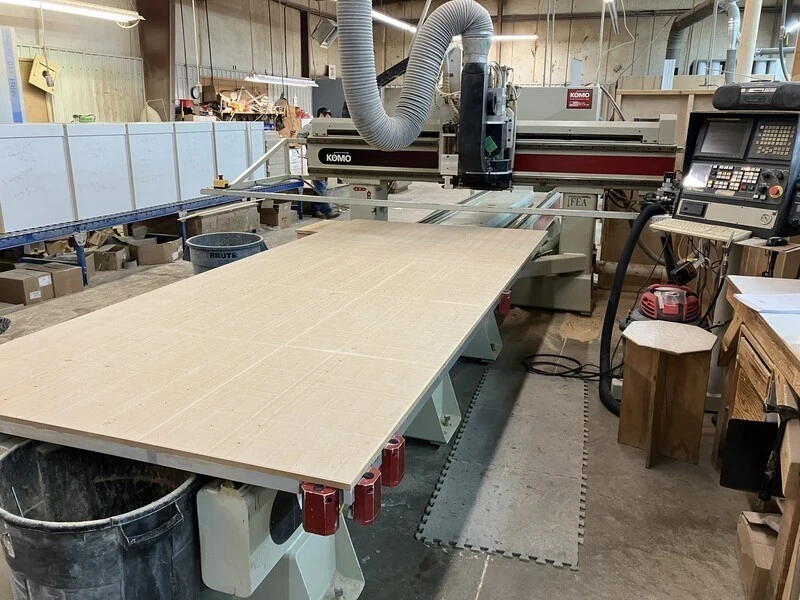

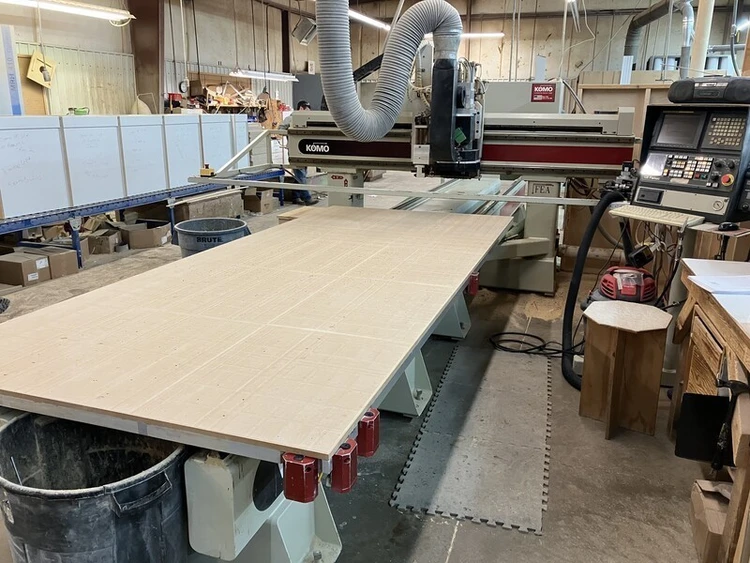

Manufacturer: KOMO Model: VR512 MACH1S
Year: 2002
Specifications:
60" x 144" x 32 1/2"H solid cast aluminum nested-based moving table with 2 vacuum zones. Heavy-duty fixed bridge machine in front-to-back configuration.
15HP HSK 63F spindle, up to 18,000 RPM with a 10 position tool changer. Tool changer is currently not working, but can be repaired for use.
11 Spindle drilling unit with 7 vertical & 4 horizontal drills
All axes ride on THK linear guide ways with motion provided by closed-loop AC servo motors driving precision pre-loaded ball screws.
3 Axes simultaneous control, linear & circular interpolation.
GE Fanuc 210i control
Includes Kaeser BSV100 25 HP vacuum pump
Under Power
Dimensions - 298" x 192" x 120" @ 22,000 lbs
