2014 BROWN/GN Model 760 30 x 21 forming and cutting area robotic stacker

Description

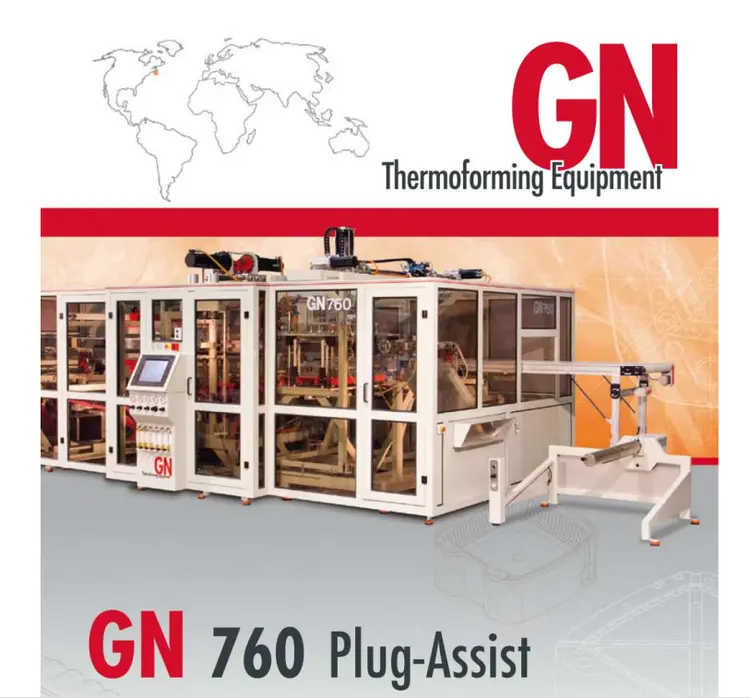

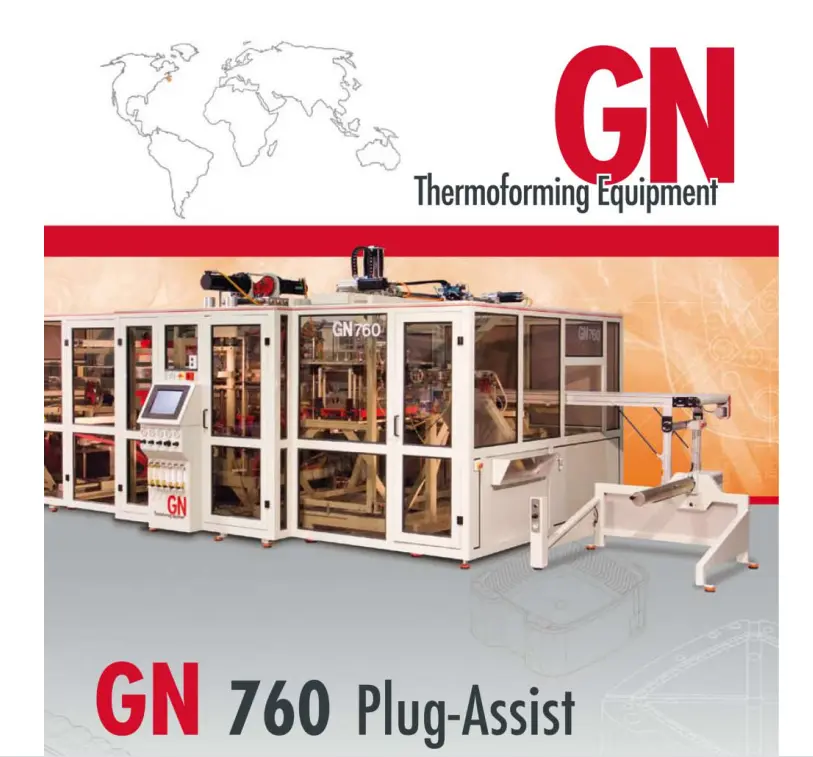

2014 GN model 760 in line and Stack Thermoforme machine
Forming Area 762mm x 534mm (30" x 21")
Maximum Knife Length (maximum)8500mm (335") for APET / 9525mm (375") for other thermoformable materials
Depth of Draw125mm (4.92") below sheet line15mm (0.59") above sheet line
Running Power Consumption28 Kilowatts/hr (Approximate)
Air Consumption (Approximate)4400 nL/min @ 6.2 bar (155 SCFM @ 90 PSI)
Machine Dimensions (l x w x h)10400mm x 3650mm x 2930mm (410" x 144 " x 116 ")
Machine Weight7300 kgs (16100 lbs)
Material Thickness Range0.25mm - 1.50mm (0.010"-0.06)0"o
Air Pressure6.2 bar (90 PSI) minimum / 9.6 bar (140 PSI) maximum
Cooling Water Consumption 65 - 150 litres/min (17 - 40 gallons/min)
Sheet Width815mm (32") maximum Material Roll
Robotic stacker

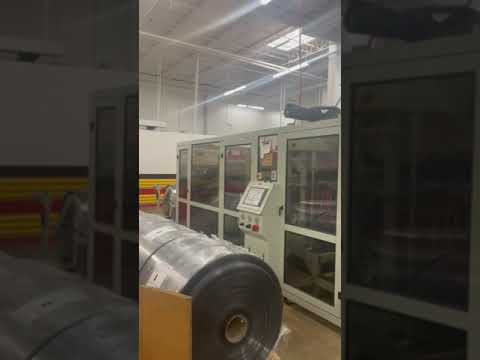

VIEW VDEO
