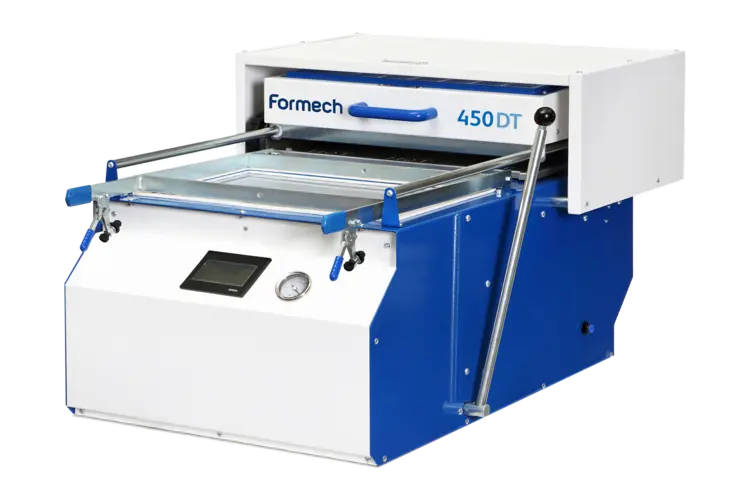

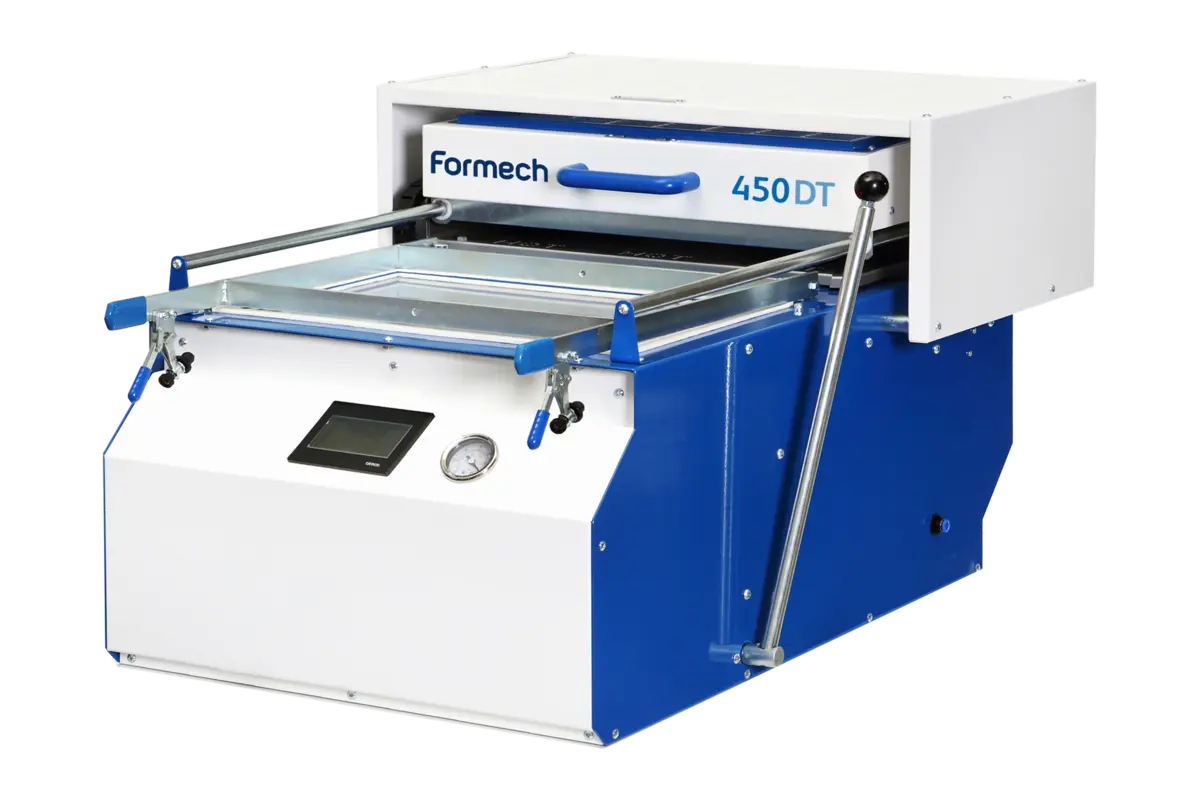

New Formech 450DT 17'' x 11'' Vacuum Former

Description

Forming Area (mm/inches): 430 x 280 / 17 x 11
Sheet Size (mm/inches): 450 x 300 / 18 x 12
Max Depth of Draw / Max Tool Height (mm/inches): 160 / 6.3”
Max Material Thickness (mm/inches): 6 / 0.25
Heater Type: Quartz
Heating Zones: 4
Width (mm/inches): 639 / 25.2
Height (mm/inches): 525 / 20.7
Depth (mm/inches): 986 / 38.8
Weight (kg/lbs): 75 / 165.0
Single Phase Power Requirements: 208-240V / 13A (EU) 110-120 / 15A (USA)
Power Consumption: 2.4kW (1.6kW USA)

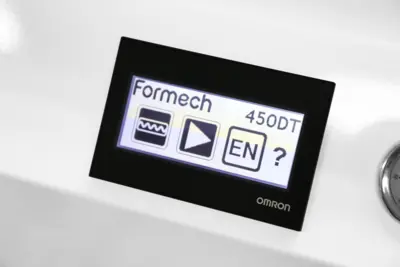

Operating interface: 3.8" Mono HMI
Vacuum Pump Type: Diaghram
Pump Flow (SCFM @ 0 in. / 60Hz) (Pump flow m3 /h @ 0mbar / 50Hz): 3.0 (4.9)
Mould Release Method: Pump exhaust
