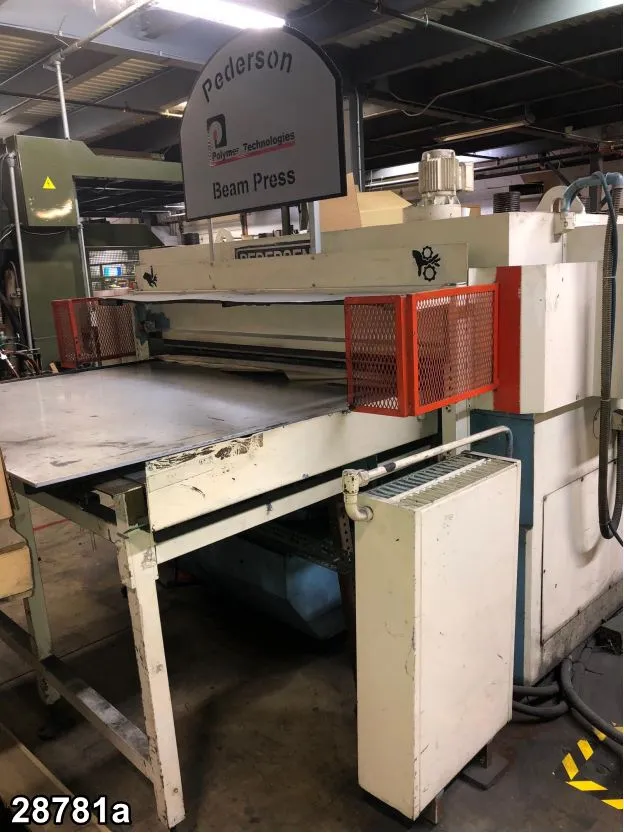

Used 100 TON PEDERSEN HYDRAULIC DIE CUTTING PRESS

Description

100 TON PEDERSEN HYDRAULIC DIE CUTTING PRESS
With sliding table
Model 601/16; 4 post downstroke type; floor standing
Distance between guides: 65" L-R
Table area: 63" L-R x 39" F-B
Cutting head area: 63" L-R x 39" F-B
Stroke: 4.375" maximum
Daylight opening (total): 17" maximum
Floor to top of bed: 40"
Power unit: Submerged hydraulic pumps, driven by
(2) approx. 7 HP motors
Controls: Pushbutton operation with stroke &
pressure control
Dual operator pushbuttons
Weight approx. 16,500 lbs.
Overall dimensions approx. 100" L-R x 96" F-B x 72" H
