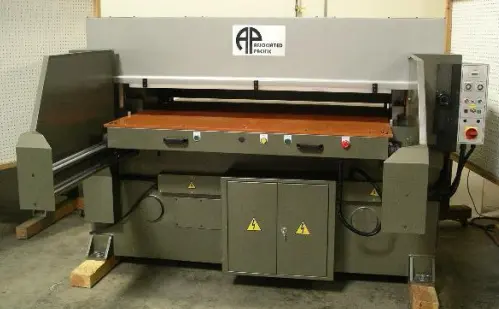

Reconditioned APMC USA FH3963-150H Hydraulic Press

Description

FULL HEAD PRESS
A four-post hydraulic press producing 150 metric (165 U.S.) tons of cutting force, with two cylinders mounted over cross members linked end to end with torsion bars. This mechanical balancing system ensures that the maximum cutting force of the press can be delivered anywhere on the bed of the press, and keeps the bed and bridge parallel even under asymmetrical (unbalanced) loads. This hydraulic press can deliver its total force at any point in the down stroke.
Model No.
: USA FH3963-150H

Cutting Force
: 150 Metric (165 US) Tons
Cutting Stroke
: 9.8” (250 mm)
Main Motor
: 20 HP
Machine Bed
: 39.4” D x 63” W (1000 x 1600 mm)
• Single Manual Slide Table
• Polypropylene Cutting Pad
• Manual 4 Post Mechanical Stops – Low point stops ensure the precise bottom
position and parallelism of the head on each cutting stroke. There are four adjustable
stops located in the head of the press. They correspond to the four corners of the
head. When one stop is adjusted all stops are adjusted at the same time.
• Power: 480 Volt, 3 Phase, 60 Cycle
