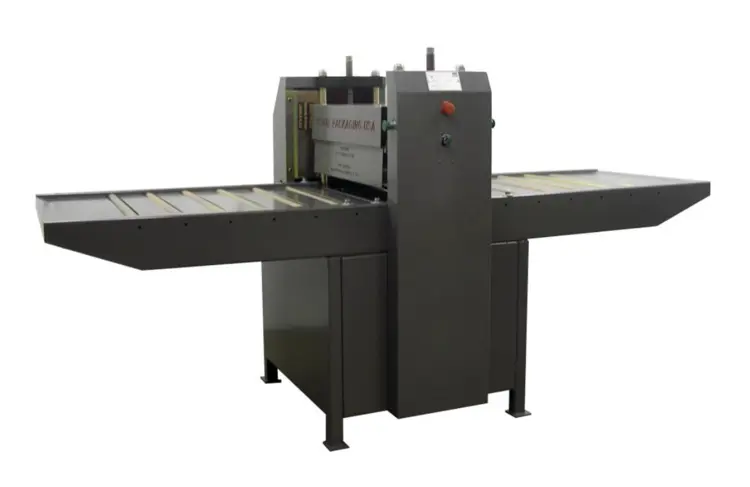

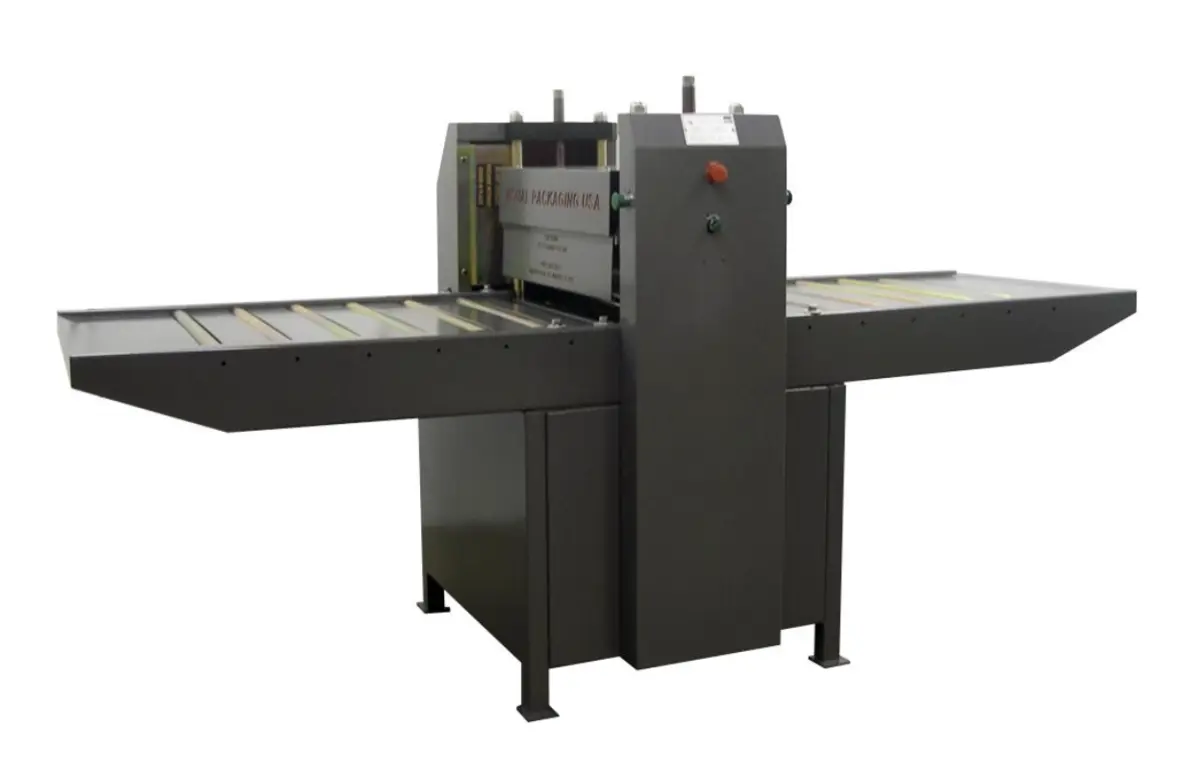

New Visual RP 54-2 Roller Die Cutter
Have one to sell?
ConditionNew
New
Standard Features:
Main power ON/OFF switch
Cycle ON/OFF switch
Cycle Start/Stop push buttons (2)
Emergency stop push button
Operator safety guards with automatic reversing (2)
Upper and lower pressure rollers are powered for superior cutting registration
2” diameter “free-running” feed rollers
Accurate single point height adjustment
Welded steel structure
One (1) polypropylene striker plate
Powder coated charcoal grey
Specifications:
Electrical:
230/460 Volts, 3 phase, 20 amps
Control:
24 Volts AC
Motor:
5 HP
Pressure roller diameter:
7.5” diameter steel
Maximum die height:
6.5”
Minimum gap between rollers:
0.0”
Maximum die width:
55”
Maximum die length:
Unlimited with proper die support
Conveyors:
2 @ 72” each
Die travel speed:
15” per second
Approximate dimensions:
156.3” L x 71.5” W x 54” H
Working height
35”
Approximate weight:
3800 LBS
Description:
The RT Series Roller Die Cutters are versatile enough to handle a full range of low to high production requirements. These machines will trim a wide range of materials such as skin packaged products, thermoformed products, cork, rubber and any other application where a steel rule die can be utilized.
Operation:
The operator places the steel rule trim die knife side up on one of the in-feed conveyers. The material to be trimmed is placed face down into the steel rule die. Large diameter spring pins can be used to help locate items that require registration to the trim die. A striker plate produced of a resilient material such is polypropylene is placed on the top of the “sandwich”. The operator actuates the start button to energize the pressure rollers and pushes the sandwich into the rollers. After the sandwich exits on the opposite side the operator pushes the stop button and removes the completed parts. The process is repeated and the sandwich is sent through the machine in the opposite direction.
Description:
The RT Series Roller Die Cutters are versatile enough to handle a full range of low to high production requirements. These machines will trim a wide range of materials such as skin packaged products, thermoformed products, cork, rubber and any other application where a steel rule die can be utilized.
Operation:
The operator places the steel rule trim die knife side up on one of the in-feed conveyers. The material to be trimmed is placed face down into the steel rule die. Large diameter spring pins can be used to help locate items that require registration to the trim die. A striker plate produced of a resilient material such is polypropylene is placed on the top of the “sandwich”. The operator actuates the start button to energize the pressure rollers and pushes the sandwich into the rollers. After the sandwich exits on the opposite side the operator pushes the stop button and removes the completed parts. The process is repeated and the sandwich is sent through the machine in the opposite direction.
Standard Features:
Main power ON/OFF switch
Cycle ON/OFF switch
Cycle Start/Stop push buttons (2)
Emergency stop push button
Operator safety guards with automatic reversing (2)
Upper and lower pressure rollers are powered for superior cutting registration
2” diameter “free-running” feed rollers
Accurate single point height adjustment
Welded steel structure
One (1) polypropylene striker plate
Powder coated charcoal grey
Specifications:
Electrical:
230/460 Volts, 3 phase, 20 amps
Control:
24 Volts AC
Motor:
5 HP
Pressure roller diameter:
7.5” diameter steel
Maximum die height:
6.5”
Minimum gap between rollers:
0.0”
Maximum die width:
55”
Maximum die length:
Unlimited with proper die support
Conveyors:
2 @ 72” each
Die travel speed:
15” per second
Approximate dimensions:
156.3” L x 71.5” W x 54” H
Working height
35”
Approximate weight:
3800 LBS
