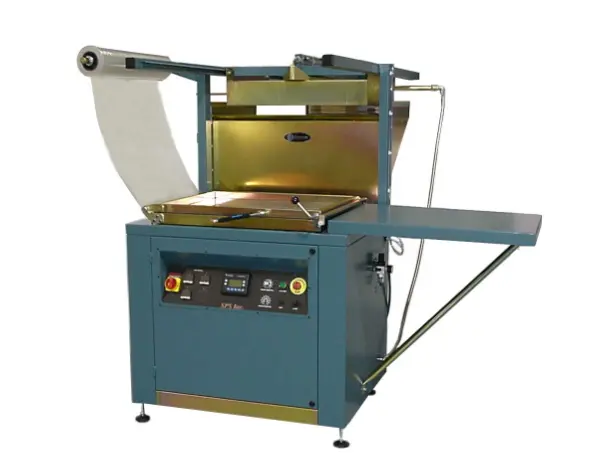

New Visual CTR-3036 Skin Packaging Machine

Description

Standard Features:
 Programmable logic control
 Operator interface color touch screen including:  Preheat time  Heat hold time  Vacuum delay time  High vacuum time
 Low vacuum time  Film cut-off time  Preheat override function
 Cycle counter  Manual frame up / down function
 Semi-Automatic cycle mode
2
 Automatic cycle mode
 Warning ALARMS
 Main disconnect switch
 Digital temperature controller(s)
 Radiant panel heating system
 Multizone moveable oven
 Automatic oven drive
 Cycle start push button
 Emergency-stop push button
 Automatic film cut-off system
 Vacuum turbine speed control(s)
 Manual in feed table
 Manual out-feed table
 Filter / Regulator / Pressure Gauge
 Powder coated charcoal grey
Specifications:
Electrical: 208-230 Volts / 3 Phase / 70 Amps
Control: 24 Volts VDC
Heating system: Radiant heater panels 17.4 KW
Number of heating zones : 3
Vacuum System: 2 Turbines @ 100 CFM ea.
Maximum card size: 30.0” x 36.0”
Film width min / max: 32.5 / 32.0”
Maximum product height: 10.0”
Air requirements: 0.912 scfm @ 100 psi
Air inlet size: ¼” NPT female
Cycle time: Variable 15 to 60 seconds
Approximate dimensions:(Base machine) : 87.4” D x 52.0” L x 72.0” H
Working height: 40.0” adjustable
Approximate weight: (Base machine) : 1000 LB
