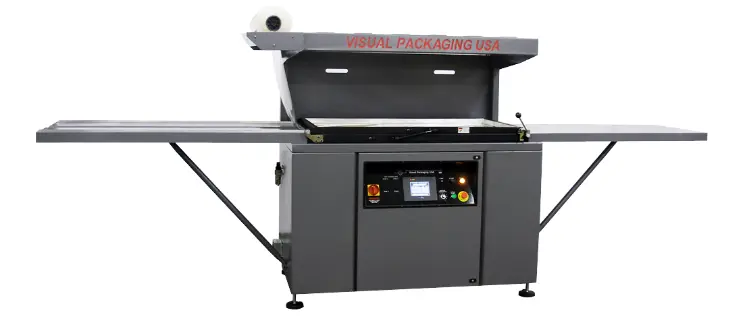

New Visual CT-3036 Skin Packaging Machine

Description

 Programmable logic control (OMRON)
 Operator interface color touch screen including:  Preheat time  Heat hold time  Vacuum delay time  High vacuum time
 Low vacuum time  Film cut-off time  Preheat override function
 Cycle counter  Manual frame up / down function
 Semi-Automatic cycle mode
 Automatic cycle mode
 Warning ALARMS
 Main power on / off switch
 Cycle start push button
 Emergency-stop push button
 Automatic film cut-off system
 Tubular Quartz impulse heating system
 Vacuum turbine speed control(s)
 Manual out-feed table
 Manual in feed table
 Filter / Regulator / Gauge
2
 Steel components polyurethane coated
Specifications:
Electrical: 208-230 Volts / 3 Phase / 70 Amps
Control: 24 Volts DC
Heating system: Quartz 17.4 KW
Vacuum System: 2 Turbines @ 100 CFM ea
Maximum card size: 30.0” x 36.0”
Film width max / min: 32.5 / 32.0”
Maximum product height: 10.0”
Air requirements per cycle: 0.48 SCF
Air inlet size: ¼” NPT female
Cycle time: Variable 15 to 60 seconds
Approximate dimensions:(Base machine) : 44.0” D x 52.0” L x 66.0” H
Working height: 40.0” adjustable
Approximate weight: (Base machine) : 800 LB
