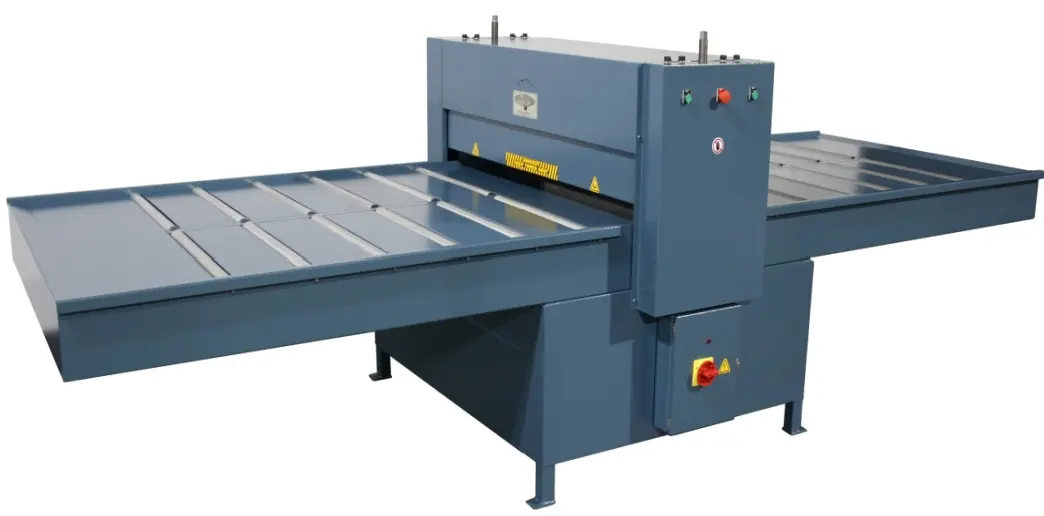

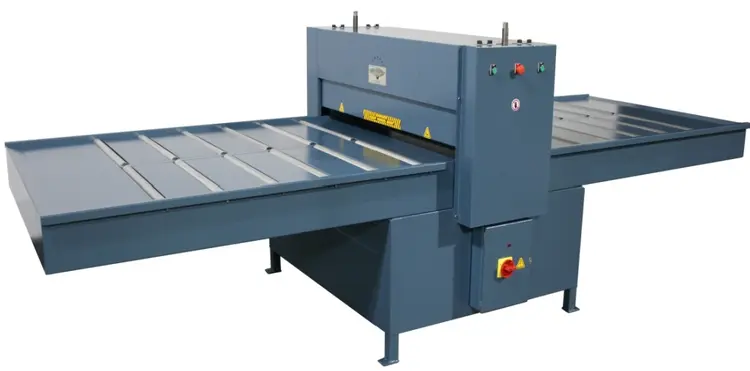

New Starview RP40-2 Rolelr Die Cutter

Description

Standard Features

• Main power OFF / ON switch/circuit breaker
• Cycle OFF / ON pushbuttons
• Emergency STOP push button
• Operator safety guards with automatic reversing (2)
• Upper and lower pressure rollers powered
• Steel-chrome free running feed conveyor rollers
• Soft start / soft stop drive system reduces vibration and wear
• Accurate single point height adjustment
• One (1) polypropylene striker plate included
◦ Welded heavy-wall steel tube construction
◦ Steel components powder coated blue color

Specifications

Electrical:
208-230 Volts/ 3PH/ 15 Amps
Drive Motor:
2 HP
Pressure roller diameter:
7.5”
Maximum standard trim die height:
6.0”
Minimum gap between rollers:
1”
Maximum die width:
41”
Maximum die length:
Unlimited with proper support
Conveyors:
2 @ 41.5” W x 54” L
Cycle speed:
Variable 1 to 4 on average
Approximate dimensions:
57”D x 127”W x 67”H
Working Height:
35”
Approximate weight:
1050 LB.
