Used 1998 Cinn/HPM w/6" Extruder

Description

65" X 24" Cinn/HPM w/6" Ext. 65" X 24" No wind or shear 1998

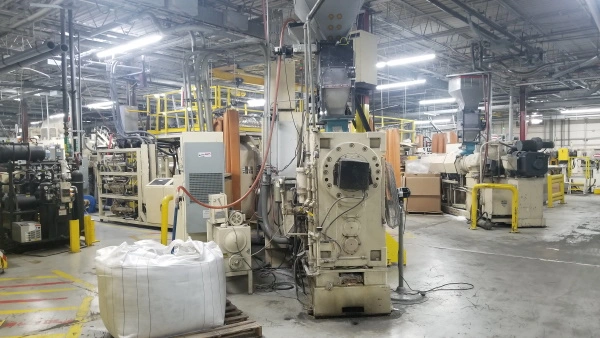

Used 65" wide Cincinnati Milacron/ HPM 1998 sheet extrusion line last used on PET at Approx 1500-1800 Lbs/Hr.
Includes the following:
6" HPM extruder 30/1 L/D direct connected to a 400HP DC motor, 1750 RPM and SCR control.  Has a 21.8/1 gear reduction, Electric heated and water cooled, non vented barrel with barrel mounted temperature control panel.  Has 60" center line height, includes a 6" Beringer UL screen changer, and static mixer section.
56" flex lip sheet die feeding an 18" x 24" x 24" downstack 65" chill roll stack with free standing pumping system and base mounted operator panel. actuated roll pressure and chain driven rolls.  Has NDC thickness gauge, dip coating station and pull roll stand.

Still installed and in operation as of February 2021
