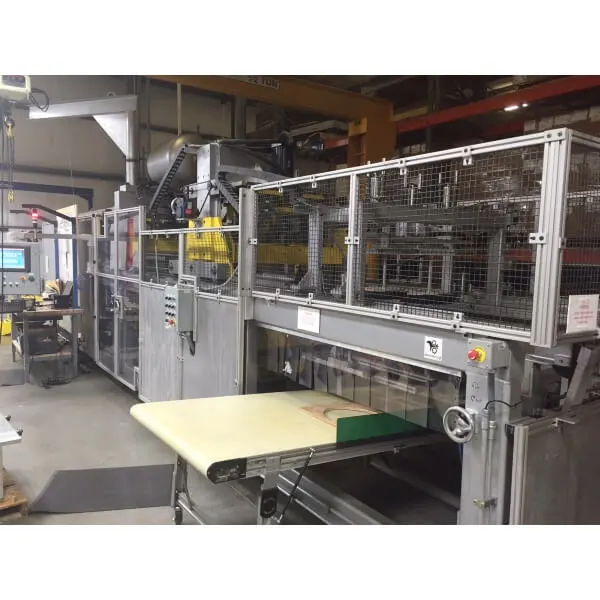

· Machine built in 2015
· Max tool size is 28” x 42”
· Max roll width 30”
· Approx. size 8’ x 50’ x 10’
· Approx. weight 20,000 lbs
· Machine comes with 5 HP Busch vacuum pump with 120 gallon vacuum reservoir tank along with 120 gallon air reservoir tank

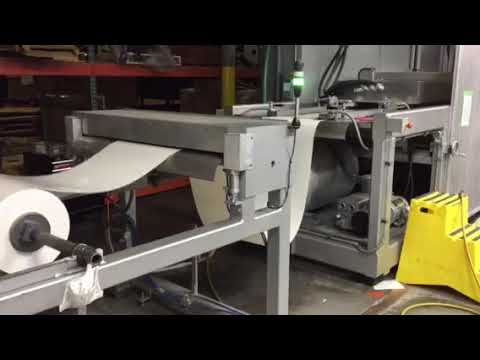

· Auto feed roll stand capable of holding 2 rolls up to 1000 lbs each and a max diameter of 60”
· Machine consists of for, trim, and down stack/punch out onto conveyor
· Capable of roll & sheet fed up to .125” thick
· #50 pin chain to convey material, drive is servo driven and digitally controlled, capable of 88” per second
· Automatic oiler & greaser
· Machine is constructed out of heavy duty tubular welded frame
· Oven
o 144” long clam shell style with emergency sag eye
o Ceramic tiles (glass on bottom, cloth on top)
o 45 zones on top 16 zones on bottom
o Zones controlled by % or temperature
o Includes sheet softener and rail heaters (Calrod)
· Form Station
o Pneumatic control with toggle lock
o Capable of pressure forming at a max of about 80 tons
o Segen quick disconnects in each platen capable of 1000 lbs tool weight per platen
o Shut height of 14” with a max stroke of 7 5/8”….open stop is adjustable close is not (7” of daylight for each platen

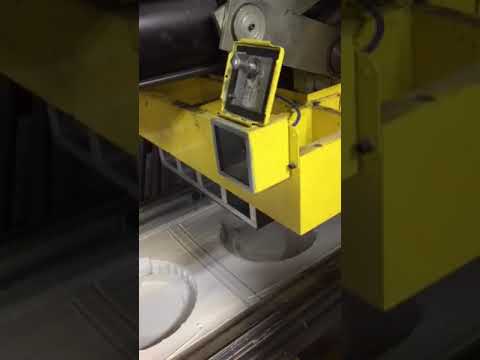

· Trim Station
o Pneumatic control with toggle lock
o Wedge system on bottom platen provides nearly 150 tons of cutting pressure
o Segen quick disconnects in each platen capable of 1000 lbs tool weight per platen
o Shut height of 14” with a max stroke of 7 5/8”….open stop is adjustable close is not (7” of daylight for each platen
· Controls
o Allen Bradley PLC control system
o 15” touch screen as HMI operator interface
· Guarding and interlocks at all critical areas
