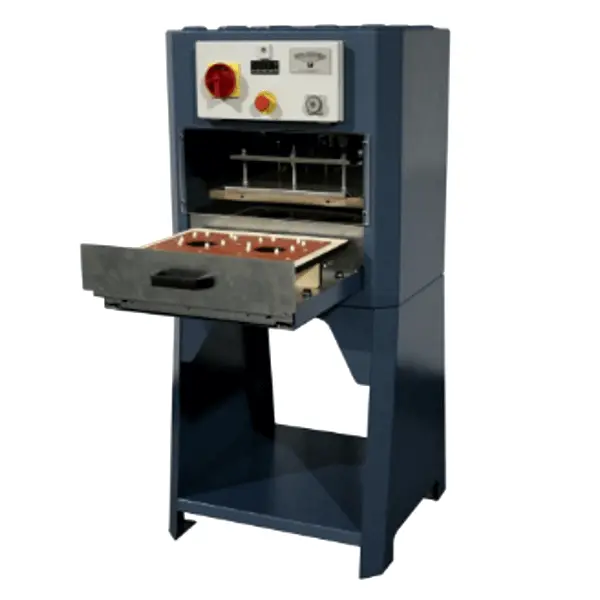

Specifications
Electrical:
208-230 Volts / 1 PH / 13 Amps
Control:
115 Volts AC
Heating system:
Cartridge type 2.25 KW
Pneumatic cylinder bore size:
1 @ 6"
Maximum air consumption per cycle:
0.9 scf @ 100 psi
Nominal seal area:
14" x 18"
Maximum Sealing force:
2900 lbs. @ 100 psi air
Air inlet size:
1/4” NPT female
Open loading stations:
1
Standard blister depth:
3.25"
Cycle speed:
Variable 1 to 6 on average
Standard allowable blister back / upward projection:
1.75”
Approximate dimensions:
42”D x 28”W x 58”H
Working Height:
37”
Approximate weight:
250 LB.
