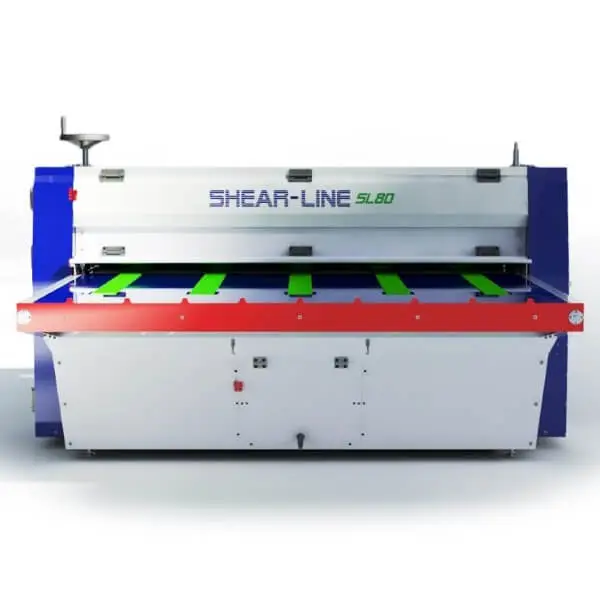

New Shear-Line SL80 Roller Die-Cutter 80”

Description

New Shearline SL80 Roller Die Cutter 80”

Model: SL80

Maximum Cutting Width: 72'' (1828 mm)

Inch: 80''

mm: 2030 mm

Control:

Each machine is fitted with latest Mitsubishi Inverter Drive technology which incorporates soft start ramp up and ramp down, soft stop. The Mitsubishi touch screen HMI gives the operator full control over speed and automatic return, plus a range of other facilities.

Shearline  features:

 Reduced the sleeve change process to under 20 minutes.
 Upgraded system controls.
 New Mitsubishi touch screen color HMI now includes safety circuit diagnostics, batch counting and many production control aids.
 New food and medical Shear-line's in stainless steel.
 Redesigned heavier duty press section, but with easy maintenance strip-down.

Unique Sleeve Change Solution:

The Shear-line is up to 50% faster than similar flatbed Die-Cutting presses. Through the use of our cleverly designed Cutting Anvil Sleeve facility, the Shear-line is safer, easier and quicker to operate. The Cutting Anvil sleeves can be changed in under 20 minutes by only one operator without the need for heavy lifting equipment.

General:

Guaranty Warranty is 3 years parts only, excluding consumables.
Optional extras Powered extension tables Servo powered press section (Automatic set up)
Consumables Polypropylene Sleeve (Lasting between 8-12 months depending on usage) Friction wheels

Safety:

The Shear-line is one of the safest roller press die-cutter machines on the market place. All doors and safety guards are installed with safety interlocks that instantly cut the machine when broken. Integrated safety software and control password.

Technical Data
Length (Without Extension Tables): 127” (3000mm)
Height: 54” (1375mm)
Width: Machine model width + 630mm
Electrical Specifications: Single phase or 3 phase
Main Drive Motor: 1.5Kw to 2.2Kw
Power Consumption: Peak 10 amps / Cont; 8 amps
Roller Speed: 50 rpm
Diameter of main press rolls: 8” (200mm)
