Lyle 50" wide complete thermforming Line with 9" depth of draw

Description

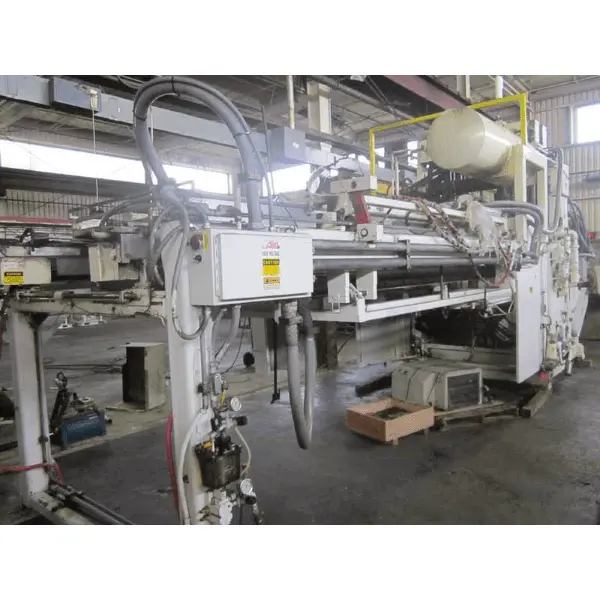

LYLE MODEL 50 THERMOFORMER
200″ LONG OVEN WITH QUARTZ TOP ELEMENTS AND CALROD BOTTOM,
50″, 50″W X 50″L MAXIMUM MOLD SIZE, 53″ MAXIMUM SHEET WIDTH,
MAXIMUM 9″ DRAW UP AND DOWN,
16″ BOTTOM STROKE, 11″ TOP STROKE,
HYDRAULIC OPERATION WITH ELECTRIC SERVO MOTOR INDEXING,
TPC-9400 COMPUTER CONTROLS,
New 1996
Lyle150P2 trim press controlled by relay logic interfaced to a TPC-9400 computer on former
The stationary platen window is 16.25″h x 50.5″w.
Manufactured in December 1996. T complete with reversible canopy.
A vacuum pump for the vacuum system is not included.
