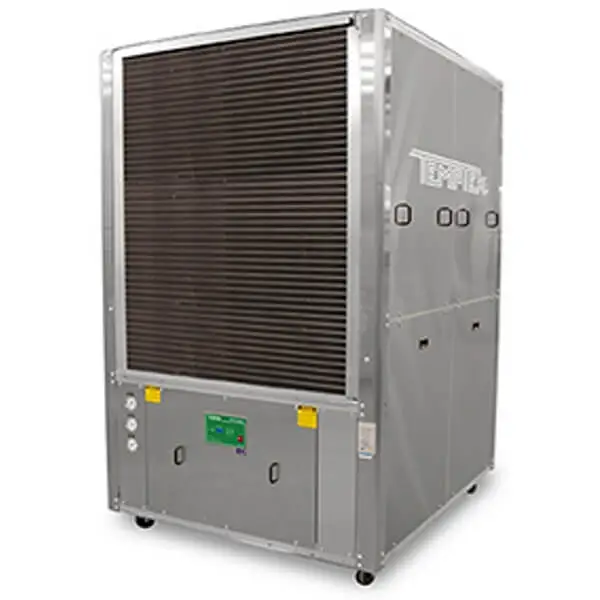

Features:
❑ 30 Ton capacity, 72 GPM water, 50oF leaving water & 95oF ambient air
❑ Air condensed refrigeration circuit with vertical discharge centrifugal blower
o Environmentally friendly R410A refrigerant
o Scroll compressor
▪ Hot gas bypass capacity control
o Filter dryer, sight glass with moisture indicator, liquid line solenoid valve & thermal
expansion valve
o Brazed plate evaporator with stainless steel plates & copper brazing material
o High efficiency condenser with copper tubes & aluminum fins
▪ 20 HP 1760 RPM ODP blower motor
▪ Air inlet filters
❑ Integral water circuit
o Stainless steel pump, 72 GPM water @ 57 PSI
▪ 5 HP 3500 RPM ODP motor
o 65 Gallon insulated nonferrous reservoir with sight tube
▪ Automatic Water Make Up System
o Nonferrous wetted surfaces which may include but is not limited to: brass, bronze,
copper, stainless steel, polyethylene, PVC and hose materials
❑ Temptek CG microprocessor control instrument
o LCD display with soft touch keys
o Digital pressure: high & low refrigerant and to process
o Modbus RTU RS485 communications
o Alarm functions: high refrigerant pressure, low refrigerant pressure, low process pump
discharge pressure, failed sensor, low fluid level & temperature deviation
o Adjustable high temperature shut down, factory set @ 100°F
o Audible alarm
❑ Terminals for remote start-stop capability
❑ Construction
o NEMA 1 control cabinet with branch circuit protection
o Stainless steel & galvanized frame with stainless steel enclosure panels
o Mounted on casters
o Unit designed for indoor operation
o Approximate unit dimensions: 96"H x 74"W x 70"L
o Approximate unit weight: 3,500 lbs.
o 2" FPT Process supply & return connections
o 1⁄2" FPT Water make-up connection
❑ Approximate unit amps
o Please specify voltage when ordering – select one from below
May 31, 2022
Page 2
Features Continued...
▪ 208/230/3/60: 192 FLA || 265 MCA || 375 MOP
▪ 460/3/60: 96 FLA || 126 MCA || 175 MOP
▪ 575/3/60: 82 FLA || 102 MCA || 125 MOP
o 5kA SCCR
