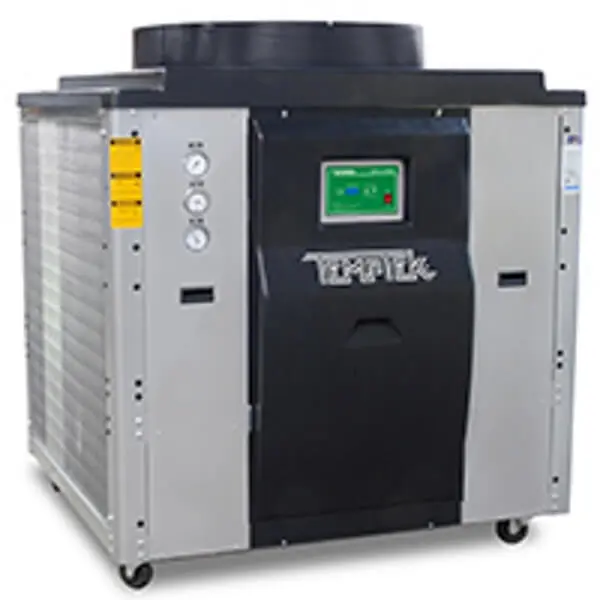

New Air-Cooled Water Chiller, Model: CGD15A-FC

Description

Overview

Portable chillers use mechanical refrigeration to cool recirculated fluids that support industrial process cooling applications.
Portable chillers include an internal pumping system and reservoir system.
Portable chillers can be moved between use points as needed.
Air-Cooled chillers use indoor ambient air to dissipate the heat from the refrigeration system.

Specifications

CGD15A-FC (1)

Capacity
(2) Tons : 14.5
kW : 50.9
Compressor
HP : 15
Type : Digital Scroll
Process Pump
HP : 3
GPM : 36
PSI : 55
Type : Centrifugal
Construction : Stainless Steel
Automatic Low Flow Bypass: : Standard
Air-Cooled Condenser
Type : Fan
CFM : 15,000
(3) Ambient : 95°F
Refrigerant
Type : R-410A
Full Load Amperage (4)
230/3/60 : 86.6
460/3/60 : 43.3
575/3/60 : 35.0
Reservoir Capacity
Holding : 65 gal
Lid : Standard
Auto Make-Up : Optional
Process Connections
To Process : 2"
From Process : 2"
Make-Up : 1/2"
Dimensions
Height : 66"
Width : 59"
Depth : 59"
Weight (5)
Shipping : 2,300 lbs

Specification Notes:

1. Since product innovation and improvement is our constant goal, all features and specifications are subject to change without notice or liability. Selection of certain optional features may change listed specifications.
2. Tons capacity at 12,000 BTU/ton per hour @ 50°F LWT @ " 115°F condensing temperature. Capacities may be +/- 5% as reserved by the compressor manufacturer. Operating at temperatures below 50° will reduce chiller capacity. The minimum recommended operating temperature when no glycol is used is 48°F.
3. Design ambient conditions. Loss of capacity and/or difficulty operating will occur at higher ambients. Minimum recommended ambient is 60°F.
4. Full load amps are higher than run load amps and must be used for sizing disconnects and supply wiring.
5. Approximate unit weight crated for shipment.

Features

Refrigerant Circuit
Air-cooled condenser with finned tubes
Propeller fan(s) induced air flow
Referant sight glass with moisture indicator
Filter-drier
Thermostatic expansion valve
R410A refrigerant
- Non-Ozone depleting
- Low global warming impact
Brazed plate evaporator
- Stainless steel plates
- Copper brazing material
Liquid line solenoid valve
Digital Scroll compressor
Energy efficient capacity control from 20% - 100%
Coolant Circuit
Insulated non-ferrous reservoir
(tank lid is standard on this model)
Reservoir level sight glass
Standard NPT process fittings
High flow centrifugal pump

Electrical
Nema 1 control cabinet
Process pump motor starter
Compressor contactor
Power entry terminal block
Branch Circuit Fusing
System Limit Devices
High refrigerant pressure
Low refrigerant pressure
Process pump motor overload
Frame Construction
Castors - for portability
Designed for indoor installation
Powder coated steel upright frame
Glavanized steel cross frame
Powder coated steel cabinetry
Lift-off side panels
Thermoformed ABS front fascia
Warranty
1 year covering parts and labor
pressure Gauges
Refrigerant high pressure
Refrigerant low pressure
Coolant pressure

Options

Electrical
Emergency Stop Button
UL listed electrical sub panel
Refrigerant Circuit
Air Inlet filter and protection screen

Coolant Circuit
Overhead Piping Kit
Reverse Flow ... gravity return to open tank
Process Line Shut Off Valves
Larger process pumps
Warranty
Extended Compressor Warranty

Control Instrument

CFD Series
Accurate control
Automatically provides energy efficient capacity modulation from 20 - 100%
Large & Bright LED temperature display
Digital Setpoint selection with soft touch keys
Illuminated Chiller On / Off switch
Compressor On light
Basic chiller diagnostics with Refrigeration Fault light
Capacity control light
Custom control software included to operate digital capacity control feature
Accurate control
Automatically provides energy efficient capacity modulation from 20 - 100%
Large & Bright LED temperature display
Digital Setpoint selection with soft touch keys
Illuminated Chiller On / Off switch
Compressor On light
Basic chiller diagnostics with Refrigeration Fault light
Capacity control light
Custom control software included to operate digital capacity control feature
