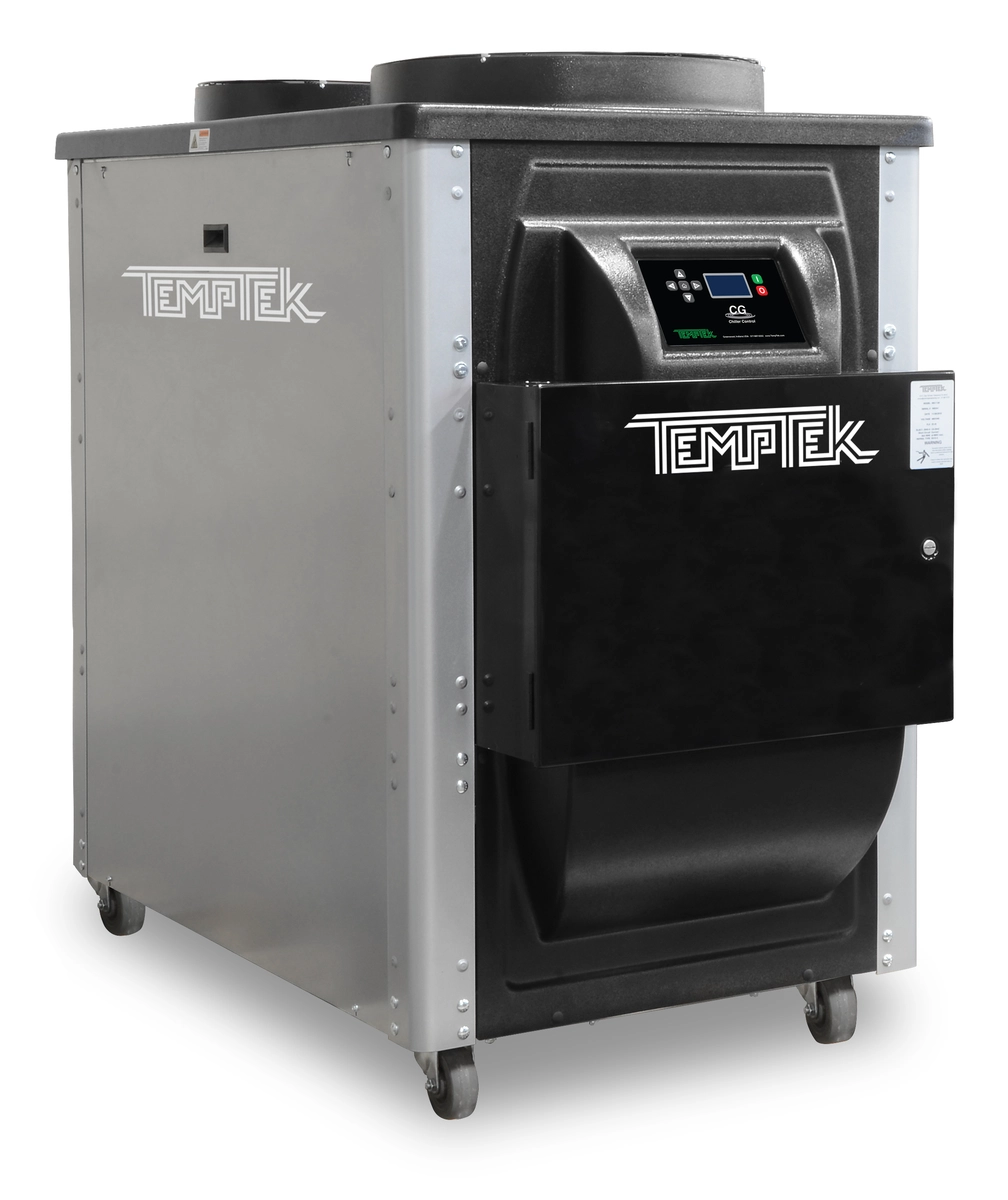

New Air-Cooled Water Chiller, Model: CGD-10A

Description

Included Features:
❑ 9.8-Ton capacity, 24 GPM water, 50ºF leaving fluid & 95ºF ambient air
❑ Air condensed refrigeration circuit
o Environmentally friendly R410A refrigerant
o Digital Scroll compressor
▪ Energy efficient capacity modulation from 20-100%
o Filter dryer, sight glass with moisture indicator, liquid line solenoid valve & thermal
expansion valve
o Brazed plate evaporator with stainless steel plates & copper brazing material
o High efficiency condenser with copper tubes & aluminum fins
❑ Integral water circuit
o Stainless steel centrifugal pump, 24 GPM @ ~40 PSI
▪ 2 HP 3500 RPM ODP Motor, #331 – 5.25" impeller
o 25 Gallon insulated nonferrous reservoir with sight tube
▪ Automatic water make up system
▪ Automatic Low Flow Bypass
o Nonferrous wetted surfaces which may include but is not limited to: brass, bronze,
copper, stainless steel, polyethylene, PVC and hose materials
❑ TempTek CG microprocessor control instrument
• LCD display with soft touch keys
• Digital pressure: high & low refrigerant and to process
• Modbus RTU RS485 communications
• Alarm functions: high refrigerant pressure, low refrigerant pressure, low process pump
discharge pressure, failed sensor, low fluid level & temperature deviation
• Adjustable high temperature shut down, factory set @ 100°F
• Audible alarm
❑ Terminals for remote start-stop capability
❑ Construction
o NEMA 1 control cabinet with branch circuit protection
o Powder coated & galvanized frame with powder coated enclosure panels
o Thermoformed ABS control panel fascia
o Mounted on casters
o Unit designed for indoor operation
o Approximate unit dimensions: 60"H x 34"W x 66"L
o Approximate unit weight: 1,030 lbs.
o 1¼" FPT Process supply & return connections
o ½" FPT Water make-up connection
❑ Approximate unit amps: (please specify voltage when ordering – select one from below)
o 208/230/3/60: 63 FLA || 78 MCA || 110 M
o 460/3/60: 31 FLA || 39 MCA || 50 MOP
o 575/3/60: 25 FLA || 31 MCA || 45 MOP
o 5kA SCCR
