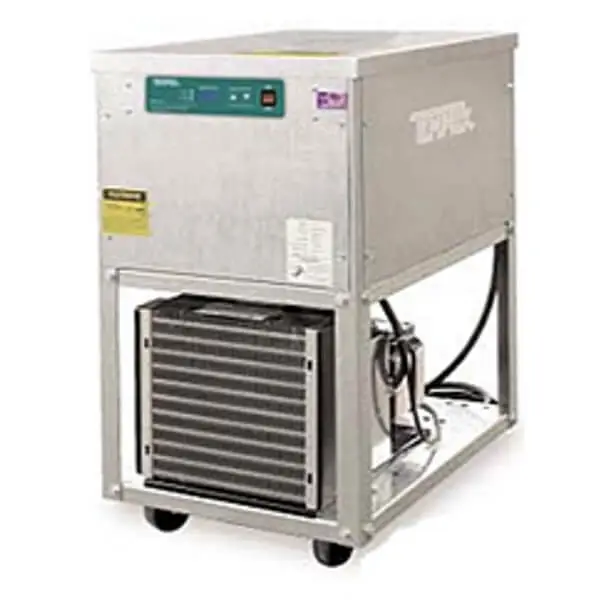

New Air-Cooled Small Water Chiller, Model: CF-1.5A

Description

Overview

Portable chillers use mechanical refrigeration to cool recirculated fluids that support industrial process cooling applications.
Portable chillers include an internal pumping system and reservoir system.
Portable chillers can be moved between use points as needed.
Air-Cooled chillers use indoor ambient air to dissipate the heat from the refrigeration system.

Specifications

CF-1.5A (1)

Capacity
(2) Tons : 1.5
kW : 5.26
Compressor
HP : 1.5
Type : Hermetic Reciprocating
Process Pump
HP : 1/2
GPM : 3.6
PSI : 60
Type : Positive Displacement
Construction : Brass
Automatic Low Flow Bypass: : Standard
Air-Cooled Condenser
Type : Fan
CFM : 1,100
(3) Ambient : 90°F
Refrigerant
Type : R-134A
Full Load Amperage (4)
230/1/60 : 20
Reservoir Capacity
Holding : 4 gal
Lid : Standard
Auto Make-Up : Optional
Process Connections
To Process : 1/2"
From Process : 1/2"
Dimensions
Height : 37"
Width : 19"
Depth : 25"
Weight (5)
Shipping : 350 lbs

Specification Notes:

Specification Notes:
1. Since product innovation and improvement is our constant goal, all features and specifications are subject to change without notice or liability. Selection of certain optional features may change listed specifications.
2. Tons capacity at 12,000 BTU/ton per hour @ 50°F LWT @ " 115°F condensing temperature. Capacities may be +/- 5% as reserved by the compressor manufacturer. Operating at temperatures below 50° will reduce chiller capacity. The minimum recommended operating temperature when no glycol is used is 48°F.
3. Design ambient conditions. Loss of capacity and/or difficulty operating will occur at higher ambients. Minimum recommended ambient is 60°F.
4. Full load amps are higher than run load amps and must be used for sizing disconnects and supply wiring.
5. Approximate unit weight crated for shipment.

Features

Refrigerant Circuit
HFC-134A refrigerant
- Non-Ozone Depleting
- Low global warming impact
Hermetic compressor
Air-cooled condenser with finned tubes
Propeller fan(s) induced air flow
Referant sight glass with moisture indicator
Filter-drier
Thermostatic expansion valve
Coolant Circuit
Positive displacement pump
Insulated non-ferrous reservoir
(tank lid is standard on this model)
Reservoir level sight glass
Standard NPT process fittings

Electrical
Nema 1 control cabinet
Process pump motor starter
Compressor contactor
Factory installed 10' power cord
System Limit Devices
High refrigerant pressure
Low refrigerant pressure
Process pump motor overload
Frame Construction
Stainless steel sheet metal
Lift-off top cover panel
Compact physical size
Castors - for portability
Designed for indoor installation
Warranty
1 year covering parts and labor

Options

Refrigerant Circuit
Air Inlet filter and protection screen
Compressor CPR Valve (for Setpoints above 65°F)
Pressure Gauges
Pressure Gauges
- Refrigerant High Pressure
- Refrigerant Low Pressure
- Coolant Pressure
Electrical
UL listed electrical sub panel

Control Instrument

CF Series
Continuous To Process temperature display
Selectable Setpoint temperature display
Illuminated ON/OFF power switch
Soft touch Setpoint selection keys
Illuminated Chiller On / Off switch
Bright and easy-to-read LED Temperature display window
Basic chiller diagnostics with Refrigeration Fault light
Machine Status with Compressor and Capacity Control indicating lights
Basic Machine Diagnostics with Refrigeration Fault indicating light
Continuous To Process temperature display
Selectable Setpoint temperature display
Illuminated ON/OFF power switch
Soft touch Setpoint selection keys
Illuminated Chiller On / Off switch
Bright and easy-to-read LED Temperature display window
Basic chiller diagnostics with Refrigeration Fault light
Machine Status with Compressor and Capacity Control indicating lights
Basic Machine Diagnostics with Refrigeration Fault indicating light
