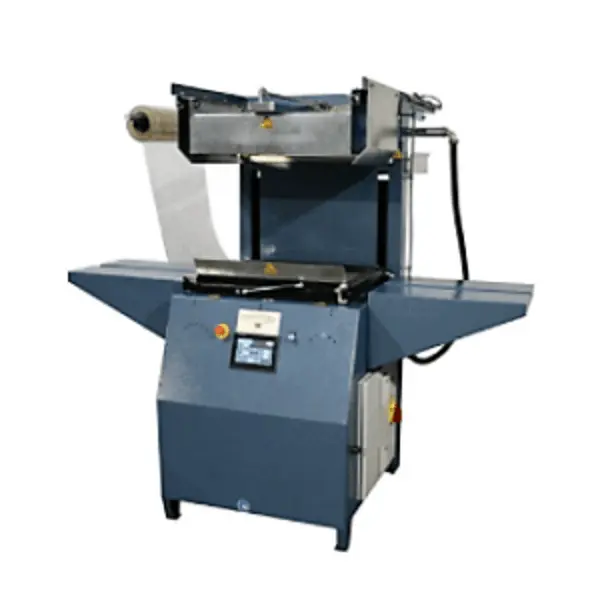

Starview SP-IR-2436 Skin Packaging Machine

Description

At a Glance:



Industrial Floor Model Skin Packaging Machine for 24” x 36” skin cards or two 18” x 24” skin cards

Use for retail carded packaging or shipping containment

Convenient pendant mounted color touch screen HMI

Remote access - Ethernet standard / Wi-Fi optional

Efficient radiant panel heater system with multi-zone temperature control from HMI

Starview’s exclusive programmable turbine vacuum control standard.  Easy HMI bar graph interface

In-feed table, out-feed table & hot wire cut-off standard

Blister forming option available

Custom machine sizes and features quoted on request



Standard Features

Programmable logic control (Omron)

Intelligent system that allows changes or upgrades from a Starview provided flash memory
Ethernet connection to PLC and HMI allows remote access by customer from PC, Laptop, smartphones and tablet devices to HMI screens and PLC functions, and by Starview for program changes, diagnosis or updates when internet connected.  Optional Wi-Fi connection available

Pendant mounted color touch screen HMI includes:

Time and date displayed on all screen pages
System monitoring page.  Heating, vacuum and Job recipe displayed at a glance
Full Job Recipe storage with memory for up to 100 different recipes
History page with last 200 cycles stored and displayed with time and date stamp
Percentage heater control for each zone
Heat Timer
Heat timer override function for fine tuning film heating cycle
Heat hold Timer keeps heaters on while & after film clamping frame lowers to prevent film cooling
Vacuum Timer
Vacuum timer override function for fine tuning of packaging cycle
Vacuum delay timer
Variable vacuum control-adjustable over the vacuum cycle using HMI bar graph interface
Hot wire film cut-off timer
Step-up counter
Manual / Auto mode
Complete manual control of all individual functions for set up
Manual film clamping frame up/down control
Machine diagnostics with difficulty location
On-screen system errors for troubleshooting
Last 7-days alarms stored and displayed with time and date stamp
Electrical parts page(s)
Pneumatic parts page(s)
Mechanical parts page(s)

Off/On main switch/circuit breaker
Cycle start button
Emergency STOP push button
Radiant heater panel oven
Zoned heater oven
Automatic pneumatic oven drive
Manual in-feed table
Manual out-feed table
Automatic hot wire film cut-off system with impulse controller
Filter, Regulator & Pressure gauge & lubricator installed on airline
Easy access to machine for maintenance
Leveling feet standard – casters optional

Welded heavy-wall steel tube construction
Steel components powder coated blue color

Specifications

Electrical:
208-230 Volts / 3 PH / 58 Amps

Control:
24 Volts DC

Heating system:
Radiant heater panel 15.1 KW

Total number of heating zones:
2

Perimeter zone:
100% (not controlled)

Interior zone(s) with percentage controller(s):
1

Vacuum system:
2 Turbines @ 100 cfm ea.

Maximum card size:
24” x 36”

Film width max / min:
26.5” / 26.0”

Maximum film roll diameter:
10”

Maximum product height:
10”

Air inlet size:
1/4” NPT female

Maximum air consumption per cycle:
1.2 scf @ 100 psi

Cycle times:
Variable 15-45 seconds

Approximate dimensions (including in-feed & out-feed tables):
116”W x 71”D x 69”H

Working Height:
40.0”

Approximate weight:
650 LB.
