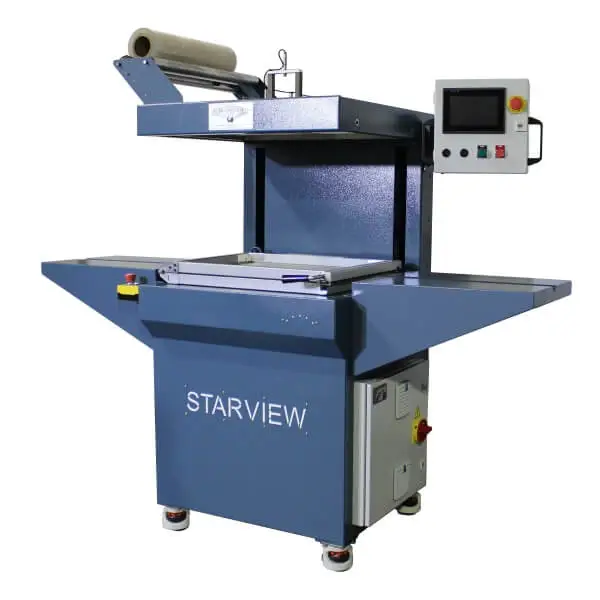

Starview SP-1824 Skin Packaging Machine

Description

At a Glance:
Industrial Floor Model Skin Packaging Machine for 18” x 24” skin cards
Use for retail carded packaging or shipping containment
Convenient pendant mounted color touch screen HMI
Remote access - Ethernet standard / Wi-Fi optional
Energy saving impulse heating instant-on quartz heater system with heater oven watt-density adjustable over the heating cycle.  Convenient HMI bar graph interface.
Starview’s exclusive programmable turbine vacuum control standard.  Easy HMI bar graph interface
In-feed table, out-feed table & hot wire cut-off standard
Custom machine sizes and features quoted on request
Standard Features
Programmable logic control (Omron)
Intelligent system that allows changes or upgrades from a Starview provided flash memory
Ethernet connection to PLC and HMI allows remote access by customer from PC, Laptop, smartphones and tablet devices to HMI screens and PLC functions, and by Starview for program changes, diagnosis or updates when internet connected.  Optional Wi-Fi connection available
Pendant mounted color touch screen HMI includes:
Time and date displayed on all screen pages
System monitoring page.  Heating, vacuum and Job recipe displayed at a glance
Full Job Recipe storage with memory for up to 100 different recipes
History page with last 200 cycles stored and displayed with time and date stamp
Heat Timer
Heater oven watt-density control 0 – 100% variable over the heating cycle-bar graph interface
Heat timer override function for fine tuning film heating cycle
Heat hold Timer keeps heaters on while & after film clamping frame lowers to prevent film cooling
Vacuum timer
Vacuum timer override function for fine tuning of packaging cycle
Vacuum delay timer
Variable vacuum control-adjustable over the vacuum cycle using HMI bar graph interface
Hot wire film cut-off timer
Heater standby – 0 – 100 percent heater wattage controller
Step-up counter
Manual / Auto mode
Complete manual control of all individual functions for set up
Manual film clamping frame up/down control
Machine diagnostics with difficulty location
On-screen system errors for troubleshooting
Last 7-days alarms stored and displayed with time and date stamp
Electrical parts page(s)
Pneumatic parts page(s)
Mechanical parts page(s)
Off/On main switch/circuit breaker
Cycle start button
Emergency STOP push button
Tubular quartz heater system
Heater standby system-percentage on cycle, shortens cycle times and provides greater consistency
Automatic hot wire film cut-off system with impulse controller
Manual in-feed table
Manual out-feed table
Filter, Regulator & Pressure gauge & lubricator installed on airline
Easy access to machine for maintenance
Leveling feet standard – casters optional
Welded heavy-wall steel tube construction
Steel components powder coated blue color
Specifications
Electrical:
208-240 Volts / 3 PH / 32 Amps
Control:
24 Volts DC
Heating system:
Tubular quartz 9.3 KW
Vacuum system:
1 Turbine @ 100 cfm
Maximum card size:
18” x 24”
Film width max / min:
20.5” / 20.0”
Maximum film roll diameter:
10”
Maximum product height:
10”
Air inlet size:
1/4” NPT female
Maximum air consumption per cycle:
0.4 scf @ 100 psi
Cycle times:
Variable 15-60 seconds
Approximate dimensions (including in-feed & out-feed tables):
80”W x 35”D x 63”H
Working Height:
40.0”
Approximate weight:
450 LB.
