At a Glance:

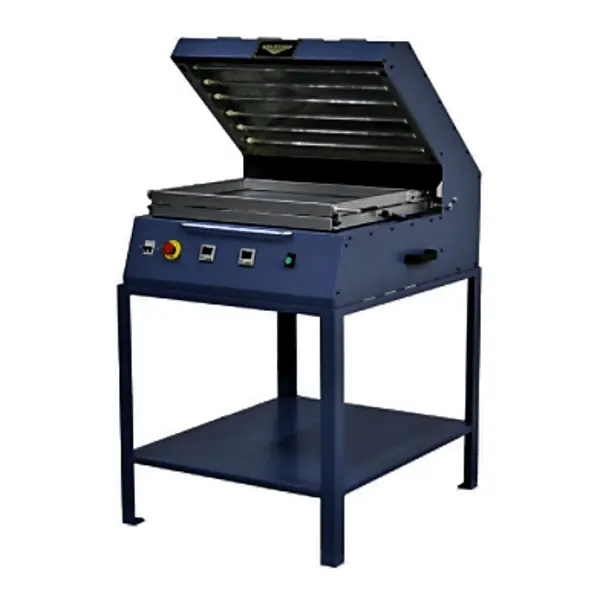

Table Top Model Skin Packaging Machine for full size 18” x 24” skin cards
Use for retail carded packaging or shipping containment
Energy saving Impulse Heating instant-on quartz heater system
Uses standard 26” wide skin packaging film
Optional manual film slitter available
Optional floor stand available
Standard Features
Cycle start button
Emergency STOP push button
Heater timer
Vacuum timer
Heater override push button – for system fine tuning
Tubular quartz heater system
Manual hinged film clamping frame with double gas cylinder lift assist.
Turbine vacuum system
Compressed air not required
Double roll support for film within machine frame
Uses standard 26” wide film
Optional manual film slitter available
Easy access to machine for maintenance
Painted steel construction
Steel components powder coated blue color
Specifications
Electrical:
208-230 Volts / 1 PH / 40 Amps
Control:
12 Volts DC
Heating system:
Tubular quartz 6.0 KW
Vacuum system:
1 Turbine @ 100 cfm
Maximum card size:
18” x 24”
Film width max / min:
26.5” / 26.0”
Maximum film roll diameter:
10”
Maximum product height:
8.0”
Cycle times:
Variable 30-60 seconds
approximate dimensions:
34”W. x 37”D x 31”H
Working Height:
Determined by table height
Approximate weight:
180 LB.
