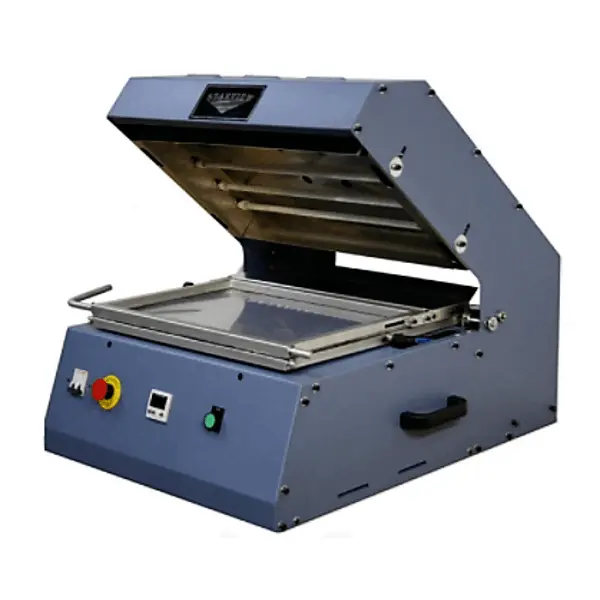

Starview MSP-1218 Skin Packaging Machine

Description

At a Glance:



Entry Level Table Top Model Skin Packaging Machine for 12” x 18” skin cards

Use for retail carded packaging or shipping containment

Energy saving Impulse Heating instant-on quartz heater system

Uses standard 20” wide skin packaging film

Optional manual film slitter available

 220 volt  single phase models available



Standard Features

Cycle start button
Emergency STOP push button
Heater timer
Vacuum timer
Tubular quartz heater system
Manual film clamping frame
Turbine vacuum system
Compressed air not required
Double roll support for film
Uses standard 20” wide film
Optional manual film slitter available
Easy access to machine for maintenance

Painted steel construction
Steel components powder coated blue color

Specifications

Electrical
208-230 Volts / 1 PH / 25 Amps (recommended)

Control:
115 Volts AC

Heating system:
220 Volt models, tubular quartz 4.0 KW

Vacuum system:
1 Turbine @ 100 cfm

Maximum card size:
12” x 18”

Film width max / min:
20.5” / 20.0”

Maximum film roll diameter:
10”

Maximum product height:
8”

Cycle times:
Variable 30-60 seconds

Approximate dimensions:
28”W x 31”D x 27”H

Working Height:
Determined by table height

Approximate weight:
60 LB.
