Starview ASP-3048 Skin Packaging Machine

Description

At a Glance:

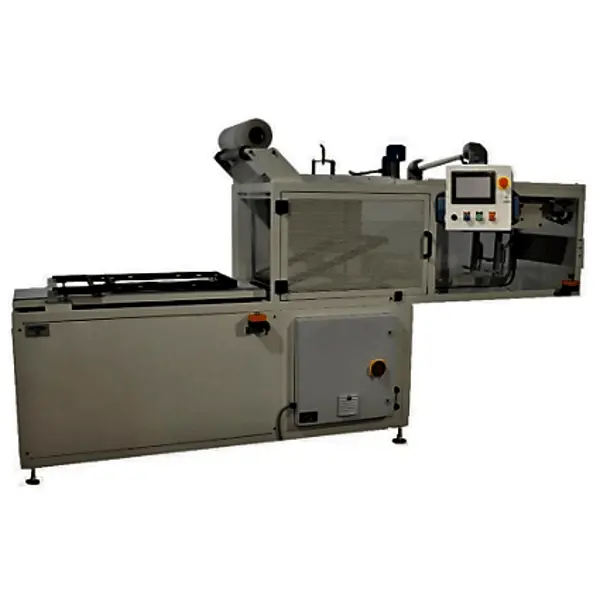

Industrial Floor Model Skin Packaging Machine for 30” x 48” skin cards

Use for retail carded packaging or shipping containment

Convenient pendant mounted color touch screen HMI

Remote access - Ethernet standard / Wi-Fi optional

Energy saving impulse heating instant-on quartz heater system with heater oven watt-density adjustable over the heating cycle.  Convenient touch screen bar graph interface.

Starview’s exclusive programmable turbine vacuum control standard.  Easy HMI bar graph interface

Automatic in-feed with traveling load template, out-feed table & hot wire cut-off standard

Optional overhead automatic out-feed system for increased versatility

Custom machine sizes and features quoted on request



Standard Features

Programmable logic control (Omron)

Intelligent system that allows changes or upgrades from a Starview provided flash memo
Ethernet connection to PLC and HMI allows remote access by customer from PC, Laptop, smartphones and tablet devices to HMI screens and PLC functions, and by Starview for program changes, diagnosis or updates when internet connected.  Optional Wi-Fi connection available

Pendant mounted color touch screen HMI includes:

Time and date displayed on all screen pages
System monitoring page.  Heating, vacuum and Job recipe displayed at a glance
Full Job Recipe storage with memory for up to 100 different recipes
History page with last 200 cycles stored and displayed with time and date stamp
Heat Timer
Infrared film temperature sensor direct temperature setting with heat timer override.
Heater oven watt-density control 0 – 100% variable over the heating cycle-bar graph interface
Heat timer override function for fine tuning film heating cycle
Heat hold Timer keeps heaters on while & after film clamping frame lowers to prevent film cooling
Vacuum timer
Vacuum timer override function for fine tuning of packaging cycle
Vacuum delay timer
Variable vacuum control-adjustable over the vacuum cycle using HMI bar graph interface
Hot wire film cut-off timer
Heater standby – 0 – 100 percent heater wattage controller
Step-up counter
Manual / Auto mode
In-feed & template cycle control
In-feed & template ON/OFF
Complete manual control of all individual functions for set up
Manual film clamping frame up/down control
Machine diagnostics with difficulty location
On-screen system errors for troubleshooting
Last 7-days alarms stored and displayed with time and date stamp
Electrical parts page(s)
Pneumatic parts page(s)
Mechanical parts page(s)

Off/On main switch/circuit breaker
Cycle start button
Emergency STOP push button
Tubular quartz heater system
Heater standby system-percentage on cycle, shortens cycle times and provides greater consistency
Infrared sensor for film temperature
Automatic hot wire film cut-off system with impulse controller
Automatic in-feed station standard
Automatic moving template loader standard
Automatic film frame clamping system standard
Manual out-feed table
Optional automatic out-feed available
Filter, Regulator & Pressure gauge & lubricator installed on airline
Easy access to machine for maintenance
Leveling feet standard – casters optional

Welded heavy-wall steel tube construction
Steel components powder coated blue color

Specifications

Electrical:
208-240 Volts / 3 PH / 106 Amps

Control:
24 Volts DC

Heating system:
Tubular quartz 27.0 KW

Vacuum system:
4 Turbines @ 100 cfm ea.

Maximum card size:
30” x 48”

Film width max / min:
32.5” / 32.0”

Maximum film roll diameter:
10”

Maximum product height:
6”

Air inlet size:
1/4” NPT female

Maximum air consumption per cycle:
1.6 scf @ 100 psi

Cycle times:
Variable 15-60 seconds

Approximate dimensions (w/automated in-feed & manual out-feed):
163”W x 48”D x 63”H

Additional length for optional out-feed system:
30”

Working Height:
40.0”

Approximate weight:
1300 LB.
