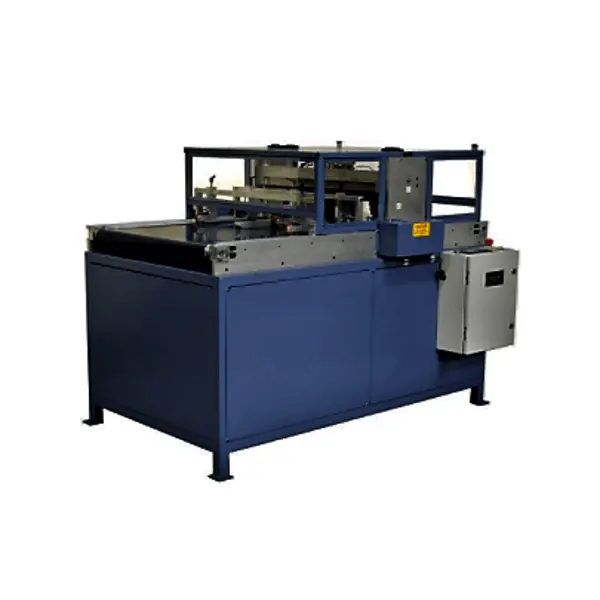

Starview SDC-30 Roller Die-Cutter 30'' x 40''

Description

At a Glance:

Effective for cutting skin boards where it is desirable to trim packages with product facing up
Available with slitting wheels for cutting or perforating
Cross-cut may be straight or rounded corners and can include common hang hole styles
Small footprint conserves floor space
Two standard machine sizes available
Quick changeover of cross cut from HMI and moveable slitters mounted on rail
Heavy-duty industrial design floor model machine



Larger standard and custom machine sizes and features quoted on request



Standard Features

Programmable logic control (Omron)

Intelligent system that allows changes or upgrades from a Starview provided flash memory

Color HMI includes:

Time and date displayed on all screen pages
System monitoring page.
Full Job Recipe storage with memory for up to 100 different recipes
History page with last 200 cycles stored and displayed with time and date stamp
24 Cross-cut press interval settings
Ability to set lengths and multiple quantities of a single length
Conveyor Speed Control
Step-up counter
Manual / Automatic cycle mode
Complete manual control of all individual functions for set up
Conveyor jog
Machine diagnostics with difficulty location
On-screen system errors for troubleshooting
Last 7-days alarms stored and displayed with time and date stamp
Electrical parts page(s)
Pneumatic parts page(s)
Mechanical parts page(s)

Main power OFF / ON switch/circuit breaker
Cycle OFF / ON pushbuttons
Emergency STOP push button
Operator safety guards
Slitter assembly descent / retract selector switch
Five single rotary knife assemblies, full cut standard
Quick adjustment for rotary slitter knives
Pneumatic press for cross-cut
Trim press safety system includes light beams to detect mis-located products
Electric powered in-feed conveyor
Electric powered out-feed conveyor
Variable conveyor travel speed control
Compressed air filter, regulator, gauge and lubricator

Welded heavy-wall steel tube construction
Steel components powder coated blue color

Specifications

Electrical:
208-230 Volts/ 3PH/ 10 Amps

Compressed air requirement:
80-100 psi

Pneumatic cylinder bore size:
2 @ 8"

Maximum air consumption per cycle:
6.3 scf @ 100 psi

Air inlet size:
3/4” NPT female

Maximum card width:
30”

Maximum card length:
40”

Maximum part height:
5”

Trim press pneumatic pressure:
10,000 lbs at 100 psi air

Cycle speed:
Variable 1 to 4 on average

Approximate dimensions:
54”D x 74”W x 54”H

Working Height:
39”

Approximate weight:
1,100 LB.
