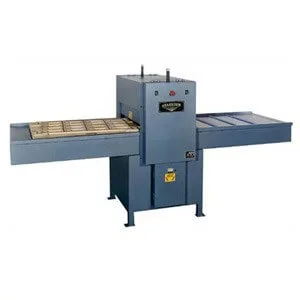

Starview RP28-2 Roller Die-Cutter

Description

At a Glance:



Double driven pressure roller design for improved cutting registration

Heavy-duty 7.5” pressure rolls and 2 HP drive motor

Uses standard steel rule dies

Die cutting occurs as die passes between rollers in both directions

Custom machine sizes and features quoted on request

Standard Features

Main power OFF / ON switch/circuit breaker
Cycle OFF / ON pushbuttons
Emergency STOP push button
Operator safety guards with automatic reversing (2)
Upper and lower pressure rollers powered
Steel-chrome free running feed conveyor rollers
Soft start / soft stop drive system reduces vibration and wear
Accurate single point height adjustment
One (1) polypropylene striker plate included

Welded heavy-wall steel tube construction
Steel components powder coated blue color

Specifications

Electrical:
208-230 Volts/ 3PH/ 15 Amps

Drive Motor:
2 HP

Pressure roller diameter:
7.5”

Maximum standard trim die height:
6.0”

Minimum gap between rollers:
1”

Maximum die width:
29”

Maximum die length:
Unlimited with proper support

Conveyors:
2 @ 29.5” W x 48” L

Cycle speed:
Variable 1 to 4 on average

Approximate dimensions:
45”D x 112”W x 53”H

Working Height:
35”

Approximate weight:
850 LB.
