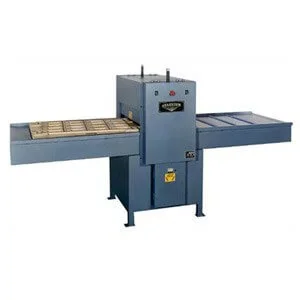

Starview RP22-1 Roller Die-Cutter

Description

At a Glance:



Single driven pressure roller design

Economical for entry level die cutting

Uses standard steel rule dies

Die cutting occurs as die passes between rollers in both directions

Custom machine sizes and features quoted on request

Standard Features

Main power OFF / ON switch/circuit breaker
Cycle OFF / ON pushbuttons
Emergency STOP push button
Lower pressure roller powered; upper pressure roller free running
Steel-chrome free running feed conveyor rollers
Accurate single point height adjustment
One (1) polypropylene striker plate included

Welded heavy-wall steel tube construction
Steel components powder coated blue color

Specifications

Electrical:
208-230 Volts/ 3PH/ 8 Amps

Drive Motor:
1 HP

Pressure roller diameter:
5.5”

Maximum trim die height:
6.0”

Minimum gap between rollers:
0”

Maximum die width:
23”

Maximum die length:
Unlimited with proper support

Conveyors:
2 @ 23.5” W x 30” L

Cycle speed:
Variable 1 to 4 on average

Approximate dimensions:
41”D x 77”W x 53”H

Working Height:
34”

Approximate weight:
550 LB.
