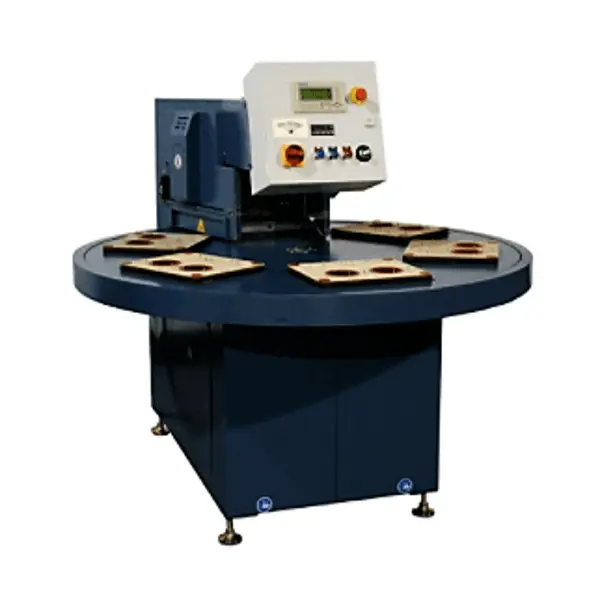

Starview RB6-1214 Blister Sealer

Description

At a Glance:



Six-station Automatic Rotary Blister Sealing Machine

Economical design without sacrificing features

Excellent for next step from shuttles and manual rotary machines

AC Variable frequency precision cam index drive

PLC machine control with simple LCD HMI

Heavy-duty industrial design floor model machine

Standard Features

Emergency STOP push button
Class 4 pneumatically operated and interlocked lift/swing gates on right and left hand sides of sealing press
Solid state heater contactor
Hot plate insulator
Teflon sheet covered sealing plate
Automatic turntable, cam index drive with variable speed AC variable frequency controller
Filter, Regulator & Pressure gauge installed on airline
Easy access for maintenance

Welded heavy-wall steel tube construction

Steel components powder coated blue color

Specifications

Electrical (customer to specify):
115 Volts / 1 PH / 20 Amps or

208-230 Volts / 1 PH / 16 Amps

Control:
24 Volts DC

Heating system 115V / 220V:
Cartridge type 1.95 / 2.25 KW

Pneumatic cylinder bore size:
1 @ 4"

Air consumption per cycle:
0.3 scf @ 100 psi

Nominal seal area:
12" x 14"

Maximum Sealing force:
1260 lbs. @ 100 psi air

Air inlet size:
1/4” NPT female

Open loading stations:
5

Standard blister depth:
3.25"

Standard allowable blister back upward projection:
0”

Cycle speed:
Variable 1 to 8 on average

Approximate dimensions:
66”D x 61”W x 61”H

Working Height:
36.0”

Approximate weight:
1,000 LB.
