At a Glance:

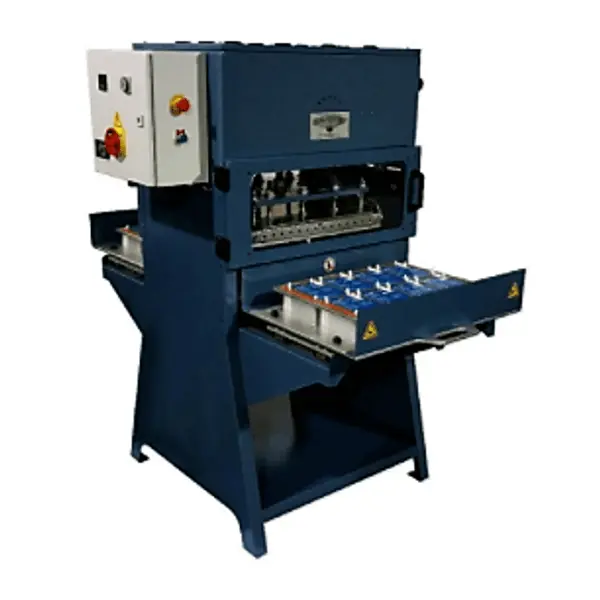

Two-station shuttle-type Blister Sealing Machine
Large format 18” x 24” sealing area accommodates a wide range of large package sizes
Economical for low to medium volume blister packaging
Heavy-duty industrial design floor model machine
Custom machine sizes and features quoted on request
Standard Features
Cycle start buttons
Main power/Heater OFF/ON selector switch
Emergency STOP push button
Hot plate insulator
Operator safety platen guard
Teflon sheet covered sealing plate
Sealing press door with E-stop safety switch
Slide trays on linear bearings for ease of operation
Filter, Regulator & Pressure gauge
Self-standing floor model
Welded heavy-wall steel tube construction
Steel components powder coated blue color
Specifications
Electrical:
208-230 Volts / 3 PH / 25 Amps
Control:
115 Volts AC
Heating system:
Cartridge type 9.0 KW
Pneumatic cylinder bore size:
1 @ 8"
Maximum air consumption per cycle:
1.90 scf @ 100 psi
Nominal seal area:
18" x 24"
Maximum Sealing force:
5025 lbs. @ 100 psi air
Air inlet size:
3/8” NPT female
Open loading stations:
2
Standard blister depth:
3.25"
Standard allowable blister back upward projection:
1.75”
Cycle speed:
Variable 1 to 6 on average
Approximate dimensions:
34”W x 69”L x 60”H
Working Height:
36.0”
Approximate weight:
600 LB.
