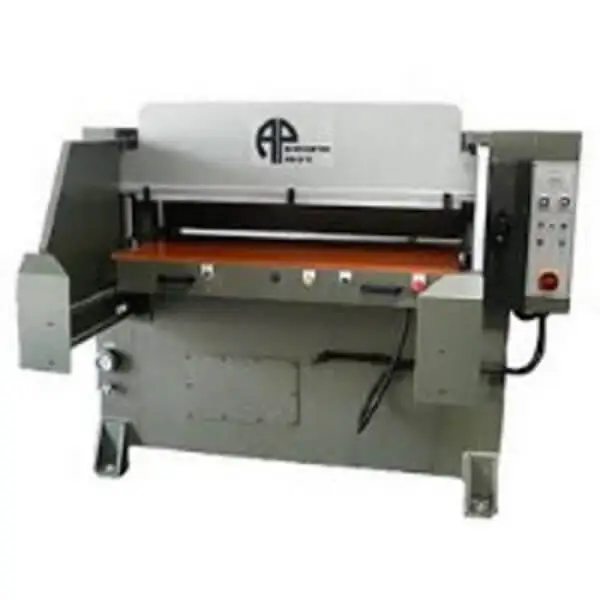

USA FH4363-200U with Single Manual Slide Table, Bed size 43.3” D x 63” W, 200 ton

Description

FULL HEAD PRESS
A four-post hydraulic press producing 200 metric (220 U.S.) tons of cutting force, with two
cylinders mounted over cross members linked end to end with torsion bars. This
mechanical balancing system ensures that the maximum cutting force of the press can
be delivered across the entire cutting area of the machine, and keeps the bed and bridge
parallel even under asymmetrical (unbalanced) loads, which, in turn, reduces mis-cuts and
damaged parts and provides for longer tool and pad life. This hydraulic press can deliver
its total force during the entire down stroke.
• Model : USA FH4363-200U
• Cutting Force : 200 Metric (220 U.S.)Tons
• Machine Bed : 43.3” D x 63” W (1100 x 1600 mm)
• Effective Cutting Area : 41.3” D x 61” W (1050 x 1550 mm)
• Cutting Stroke : 5.9” (150 mm)
• Max. Daylight : 7.9” (200 mm)
• Single Manual Slide Table
• Polypropylene Cutting Pad
