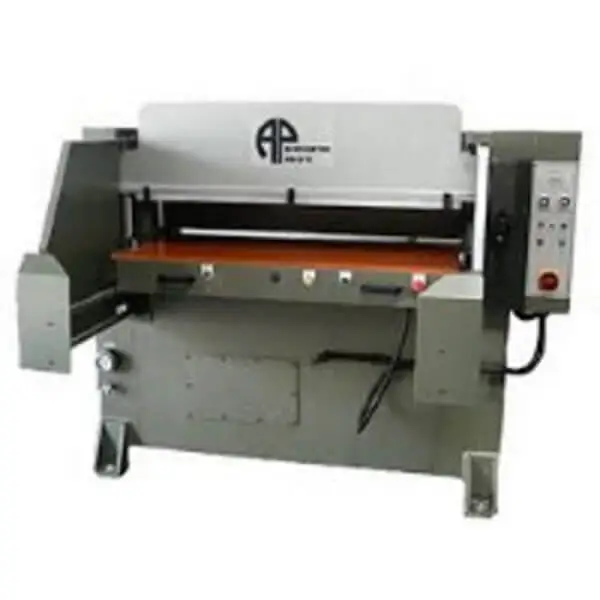

USA FH4163-150U with Single Manual Slide Table, bed size 41.3” D x 63” W, 150 Ton

Description

FULL HEAD PRESS
A four-post hydraulic press producing 150 metric (165 U.S.) tons of cutting force, with two
cylinders mounted over cross members linked end to end with torsion bars. This
mechanical balancing system ensures that the maximum cutting force of the press can
be delivered across the entire cutting area of the machine, and keeps the bed and bridge
parallel even under asymmetrical (unbalanced) loads, which, in turn, reduces mis-cuts and
damaged parts and provides for longer tool and pad life. This hydraulic press can deliver
its total force during the entire down stroke.
• Model : USA FH4163-150U
• Cutting Force : 150 Metric (165 U.S.)Tons
• Machine Bed : 41.3” D x 63” W (1050 x 1600 mm)
• Effective Cutting Area : 39.4” D x 61” W (1000 x 1550 mm)

724 Via Alondra • Camarillo, California 93012-8713
Phone 805-445-4740 • 800-679-APMC • Fax 805-445-4750
Email: sales@apmcorp.com Web Site: www.apmcorp.com

Page 3 of 6

ASSOCIATED
PACIFIC
MACHINE
CORP.
• Cutting Stroke : 5.9” (150 mm)
• Max. Daylight : 7.9” (200 mm)
• Single Manual Slide Table
• Polypropylene Cutting Pad
