APMC 80 Ton Full Head Press, Bed size 35.4'' D x 63'' W

Description

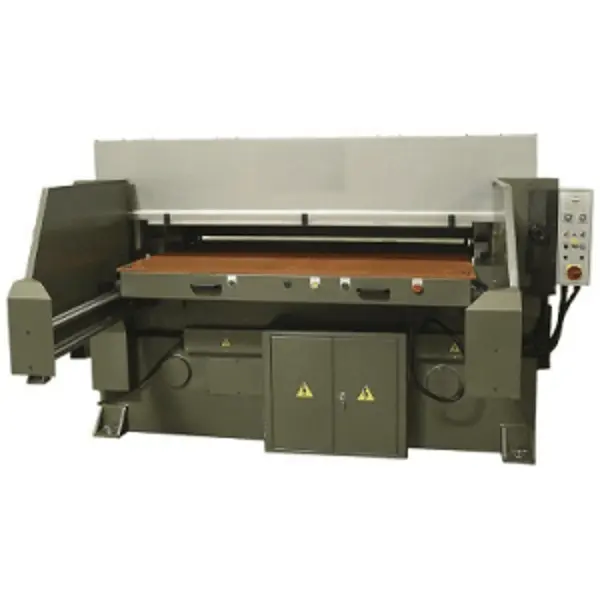

FULL HEAD PRESS
A four-post hydraulic press producing 80 metric (88 U.S.) tons of cutting force, with two
cylinders mounted over cross members linked end to end with torsion bars. This
mechanical balancing system ensures that the maximum cutting force of the press can
be delivered across the entire cutting area of the machine, and keeps the bed and bridge
parallel even under asymmetrical (unbalanced) loads, which, in turn, reduces mis-cuts and
damaged parts and provides for longer tool and pad life. This hydraulic press can deliver
its total force during the entire down stroke.
• Model : USA FH3563-80M
• Cutting Force : 80 Metric (88 U.S.) Tons
• Machine Bed : 35.4” D x 63” W (900 x 1600 mm)
• Effective Cutting Area : 33.5” D x 61” W (850 x 1550 mm)

724 Via Alondra • Camarillo, California 93012-8713
Phone 805-445-4740 • 800-679-APMC • Fax 805-445-4750
Email: sales@apmcorp.com Web Site: www.apmcorp.com

Page 3 of 3

ASSOCIATED
PACIFIC
MACHINE
CORP.
• Cutting Stroke : 7.1” (180 mm)
• Max. Daylight : 10.1” (257 mm)
• Main Motor : 10 HP
• Power : 220 Volt, 3 Phase, 60 Cycle
• Single Manual Slide Table
• Polypropylene Cutting Pad
