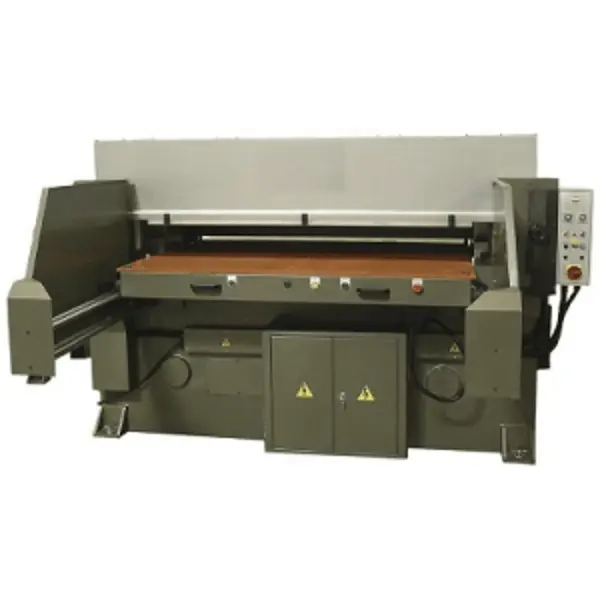

New APMC Hydraulic press, 80 TONS, Bed size 45'' X 57'' Model USA FH4763-80M

Description

New APMC Hydraulic press  Model USA FH4763-80M

Cutting Force: 80 Metric ( 88 U.S) Tons
Machine Bed: 47.2''D x 63''W ( 1200 x 1600 mm)
Effective Cutting Area: 45.3''D x 61''W (1150 x 1550 mm)
Cutting Stroke: 7.1'' ( 180 mm)
Max. Daylight: 9.1'' ( 230 mm)

FULL HEAD PRESS

A four-post hydraulic press producing 80 metric (88 U.S.) tons of cutting force, with two
cylinders mounted over cross members linked end to end with torsion bars. This
mechanical balancing system ensures that the maximum cutting force of the press can
be delivered across the entire cutting area of the machine, and keeps the bed and bridge
parallel even under asymmetrical (unbalanced) loads, which, in turn, reduces mis-cuts and
damaged parts and provides for longer tool and pad life. This hydraulic press can deliver its total force during the entire down stroke.

Option:

• Model FH4763-100M – Above machine with 100 Metric (110 U.S.)Tons of cutting force

– Additional Price: $8,000.00
