Used ZMD THERMOFORMER 48'' X 96'', ceramic heat, single station
Have one to sell?
ConditionUsed
1 available

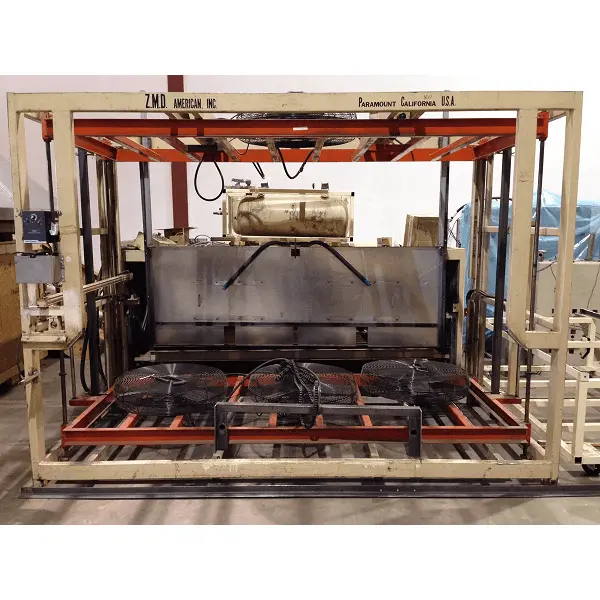

48'' x 96'' ZMD ThermoformerMFG. By Z.M.D. International Inc.
Single station
Forming area 48'' x 96''
Stroke on bottom platen about 24''
Stroke on top platen about 36''
30'' daylight bottom platen
42'' daylight top platen
Powerful pneumatic system that enable fast movement of the platen for faster cycle.
Two vacuum tanks. Comes with separate '2 story' rack for space saving.
Overall dimensions:
143'' wide x 167'' deep x 93'' tall (with top cylinders removed)
Machine can be shipped in 2 sections:
(Front: 139'' wide x 67'' deep x 93'' tall with top cylinders removed) +
(Back: 139'' wide x 100'' deep x 56'' tall)
Recent Modification
New Windows software (Smartform) installed on a brand new computer. Including rolling cart.
Extended oven, 2' deeper at the back to improve heating control.
Added 6 zones on top and 6 at the bottom. This machine now has 28 zones on top and 28 at the pbottom for a total of 56 zones
162 ceramic heaters for bottom oven.
28 panel glass heaters for top of oven
New electrical/electronic panel designed by ZMD was added to the machine for the extra 12 zones
Upgraded bottom heaters from glass to ceramic.
Top heaters are glass panel
Enclosed oven to improve heating control (heat shield)
Extras
New removable on demand conveyor system was added to this machine to be able to bring other type of mould in and out of the oven with an automated door system. This conveyor is controlled by vaariable DC motor control. Can easily switch from regular thermoforming to conveyor style quickly.
Electrical Specifications
480VAC3PH280 AMPS (heaters only)
Bottom oven motor: 1/2 HP SP 7.5 AMPS
Other: 120V 20 AMPS breakers for 6 fans
