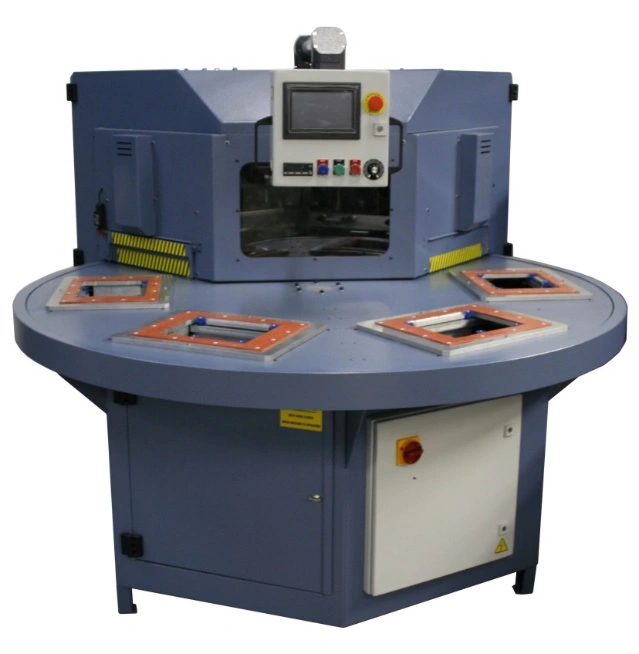

Refurbished Starview PHS6-1418 for Sealing Clam Shell Blisters, 14'' x 18'' Sealing Area

Description

Standard Features

Programmable logic control (Omron)

Intelligent system that allows changes or upgrades from a Starview provided flash memory
Ethernet connection to PLC and HMI allows remote access by customer from PC, Laptop, smartphones and tablet devices to HMI screens and PLC functions, and by Starview for program changes, diagnosis or updates when internet connected.  Optional Wi-Fi connection available.

Color HMI includes:

Time and date displayed on HMI
System monitoring page.  Heating, batch counter and job recipe displayed at a glance
Production counter page displays total machine cycles, current job cycles and current job completed packages.  Production speeds are displayed in both cycles per minute and packages per minute
Machine standby mode.  7-day programmable schedule allows automatic machine start-up and shut down
Full Job Recipe storage with memory for up to 100 different recipes
History page with last 200 cycles stored and displayed with time and date stamp. Includes up to 4 days of pressure and temperature history graphs.
Digital temperature controller on screen display in degrees Fahrenheit or Celsius with alarms
Seal Timers
Table speed control
Table rotation delay timer
Manual / Auto mode
Complete manual control of all individual functions for set up
Table jog
Low air pressure machine cycle-stop
Machine diagnostics with difficulty location
Preprogrammed for one optional finished package unloading system
On-screen system errors for troubleshooting
Last 7-days alarms stored and displayed with time and date stamp
Electrical parts page(s)
Pneumatic parts page(s)
Mechanical parts page(s)

Main power switch
Two-position START/STOP system for Auto Mode
Emergency STOP push button
Class 4 pneumatically operated and interlocked safety lift gates on both sides of sealing press
Automatic turntable, cam index drive with variable speed AC variable frequency controller
Unobstructed rotary table top
Rotary table perimeter safety guard
Filter, Regulator & Pressure gauge installed on airline
Heated sealing station

Hot plate insulator
Quick-change mounting for relieved face plates
Pressure regulator to adjust heated sealing station pressure

Cooling station

Air or water-cooled platen
Quick-change mounting for relieved face plates
Able to be shut down for standard blister package sealing

Base machine pre-wired, plumbed and programmed to accept finished package unloading system.
Easy access through rear of machine for tooling changeover or maintenance

Welded heavy-wall steel tube construction
Steel components powder coated blue color


Specifications

Electrical (Customer to specify):

208-230 Volts / 1 PH / 32 Amps or
208-230 Volts / 3 PH / 25 Amps

Control:

24 Volts DC

Heating system:

Cartridge type 4.8 KW

Heated platen pneumatic cylinder bore size:

1 @ 6"

Temperature range for Plastic-to-Plastic sealing:

200-230° C

Temperature range for Blister-to-Card sealing:

170-180° C

Cooling platen pneumatic cylinder bore size:

1 @ 6”

Chilled water temperature required:

45-50° F

Maximum air consumption per cycle:

1.8 scf @ 100 psi

Self-standing Finished Package Unloader air consumption per cycle:

0.5 scf@100 psi

Lightweight package hold-down air consumption per cycle:

0.4 scf @100 psi

Sealing fixture / tray

14” x 18”

Nominal seal area:

13" x 17"

Maximum Sealing force:

2900 lbs. @ 100 psi air

Air inlet size:

1/2” NPT female

Open loading stations:

4

Maximum clamshell / blister depth (bottom):

3.00"

Maximum clamshell height (top):

2.25”

Cycle speed (Plastic-to-Plastic):

Variable 1 to 10 on average

Cycle speed (Blister-to-Card):

Variable 1 to 15 on average

Approximate dimensions:

70”D x 66”W x 70”H

Working Height:

37.0”

Approximate weight:

2,200 LB.
