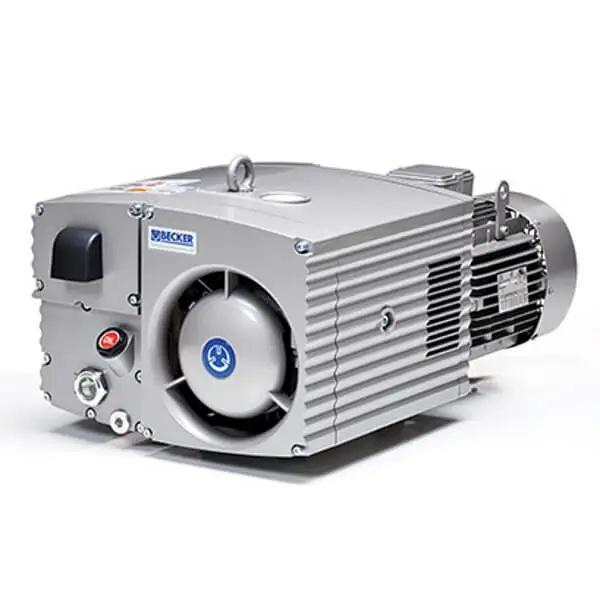

New Becker Model U 5.100 Rotary Vane Vacuum Pump and 3 HP Motor
230/460, 208V
3 PHASE, 2.6KW
60HZ: 230/460V +/- 10% IE3
60HZ: 208V +/- 10%
IP55, CLASS (EN 60529)
TEMPERATURE CONTROL
THERMO SWITCH (TKO, BIMETAL)
CC/CE/CSA/UR(UL)/US VERSION
INTERNAL GAS BALLAST
RAL 9007 GREY ALUMINUM
Capacity: 71 SCFM open flow. Maximum vacuum: .075 Torr.
Description: Oil flooded rotary vane vacuum pump with two stage oil separation, pressure
differential lubrication, integrated anti-suck back valve, air-cooled oil cooler, horizontally
mounted external inlet filter, initial charge of Becker’s semi-synthetic oil, and coupled to a
3 HP, 208/230/460 volt, 3 phase, 60 Hz., TEFC motor.
