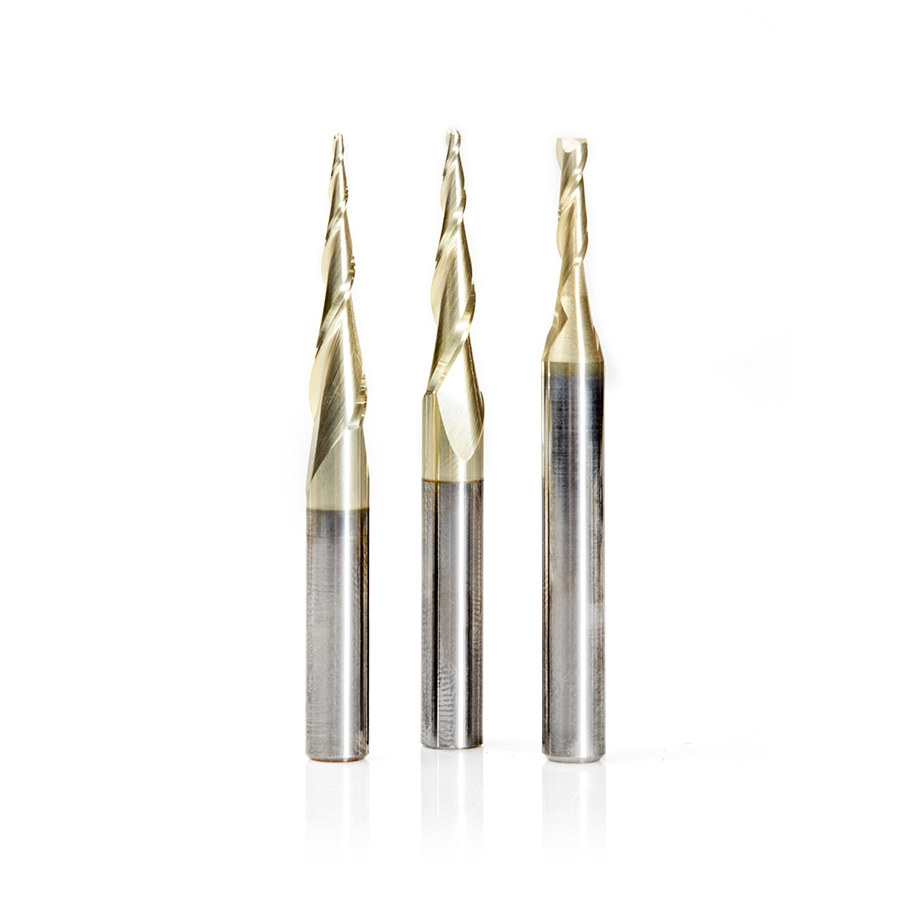

AMS-110 3-Pc CNC Up-Cut Spiral 2D and 3D Carving Ball Nose & Flat Bottom ZrN Coated Solid Carbide 1/4 Inch Shank Router Bit Set for IntelliCarve, Includes 1mm, 1/16 & 1/8 Diameters

Description

Solid Carbide Up-Cut Spiral 2D and 3D Carving Ball Nose (Conical Ball) and Flat Bottom, Zirconium Nitride (ZrN) Coated CNC Router Bit Sets

Specially designed for 2D and 3D CNC profiling and carving in plastic aluminum & wood with machines such as "i-Carver" CNC Shark® ShopBot® Datron Carvewright™ and IntelliCarve. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear sharper cutting edges extended tool life and less friction & heat buildup.Applications:

A perfect bit for 3D carving
Precision 2D and 3D large scale carving
Great for deep profiling
Dimensional signage
3D millwork
2D and 3D contouring profiling modeling and pattern making for cabinetry sign making furniture making and jewelry mold making
Compatible with CarveWright™ and CompuCarve woodworking systems
Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials

Excellent for cutting:

Acrylonitrile-Butadiene-Styrene (ABS)
Acrylic
Acrylic Stone
Aluminum
Brass
Bronze
Composite
Copper
Corian
Coroplast®*
Dibond®
Ethafoam***
Ethylene-vinyl Acetate Foam (EVA)
Expanded Polypropylene (EPP)**
Expanded Polystyrene Foam (EPS)
Extruded Polystyrene Foam (XPS)
Fiberglass
Fiberglass PCB Board
Foam Board
Graphite
HDPE
HDU
20lbs High Density Urethane
Lexan™
MDF/HDF
PALFOAM™
Phenolics
Phenolic Composites
Plastics
Poly (methyl methacrylate) (PMMA)
Polyethylene Foam***
Polylam***
Polyurethane Foam
PVC
PVC Foam Board
Sign Board
Sign Foam
Titanium
Tooling Board
Wood
XPE (Cross Linked Polyethylene) Foam

*A soft plastic cardboard made with super soft super flexible PVC.
**Expanded polypropylene (EPP) is a foam form of polypropylene.
***Ethafoam Polyethylene and Polylam are durable flexible closed-cell foams with excellent memory.

Benefits of Zirconium Nitride (ZrN) Coating

Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
Have the tendency to run/spin much faster than an uncoated tool
Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
High flute volume supports high feed rates and chip loads
High aspect ratio for single pass deep-reach cutting
Flute geometry optimized for cutting sign foam sign board hardwoods thermoplastics and phenolic composites
