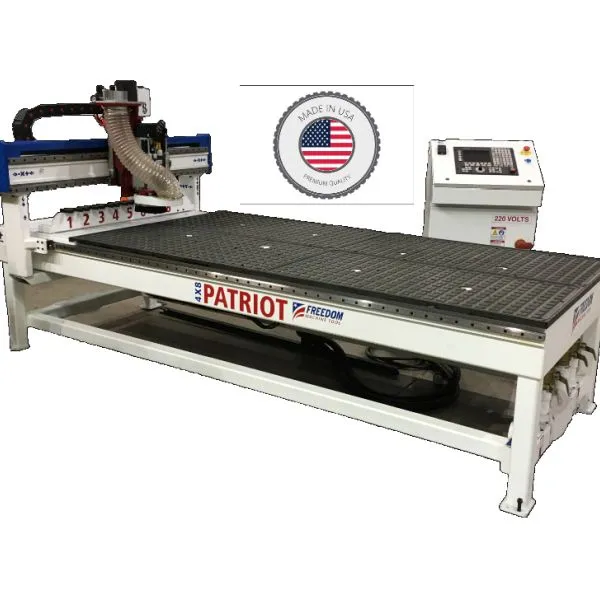

Freedom Machine Tool Patriot CNC Router, 4'x8' Table, 5HP Spindle, New with Warranty
New Freedom Machine Tool Patriot CNC Router - Sign Shop Configuration
New With Warranty
220 Volt, 3 Phase, 60hz power - Available in single phase as well
5.1hp/3.9kw HSD® ER32 18,000 rpm 220V collet spindle
4′ x 8′ phenolic 2-zone vacuum table with 2 ea. 1.50″ 2-way ball valves (one per zone)
10hp Becker vacuum pump VTLF 2.250, 174 SCFM, 24″ Hg, 208/220/460 volt, 3-ph, 60 Hz
Automatic tool height sensor
3 day on-site machine setup & training. Includes expenses
Standard Specifics:
7 Inches Z-axis travel
The X & Y axes are laser calibrated
Recirculating ball screw assembly on all axes
Fagor 8037 3-axis industrial controller with 7.50” LCD color monitor and stand-alone electrical
cabinet. Fagor AC digital drives with closed-loop brushless AC servo motors with absolute encoders on all
linear axes
Dust collection hood with purchase of spindle (Dust collection system not included) Dust delivery collection on top of Z-axis accepts a 5 inch dust collection line from client dustcollection system
4 Ea. centralized grease fitting manifolds mounted on machine to easily lubricate 14 grease locations
Autodesk Fusion 360 software with ArtCAM (one year subscription) and 3-axis post processor
1 Year limited warranty
Lifetime technical support
