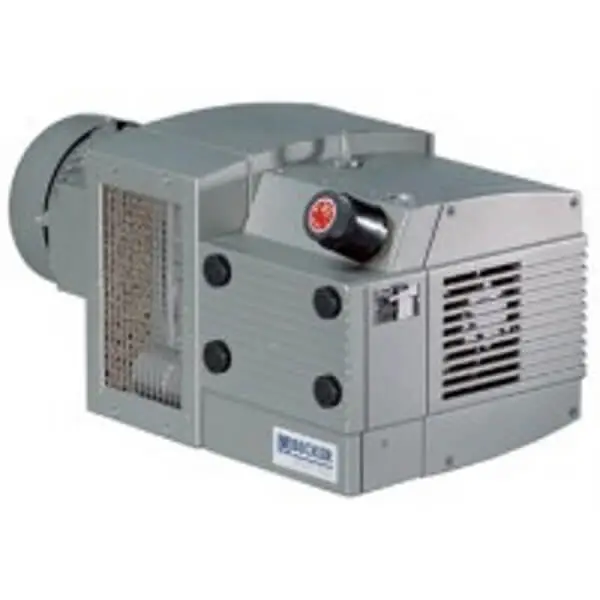

Becker Model DVT 3.100 Rotary Vane Combination Vacuum Pressure Pump with 7.5HP Motor
New With Warranty
Capacity: 70 SCFM open flow. Simultaneous: 18” Hg. vacuum and 9 PSIG pressure.
Description: Oil less rotary vane combination vacuum/pressure pump with carbon vanes,
built-in primary and secondary suction filter, built-in carbon dust separator, vacuum and pressure
regulating valves, air cooled aftercooler, coupled to a 7.5 HP, 208/230/460 volt, 3 phase,
60 Hz, TEFC motor.
Recommended Accessories
Becker Digital 0-30” Hg Vacuum Gauge including 11 user-selectable metric or imperial pressure
scales with 2½“ face, ¼” bottom mount. Used as a visual indicator for maintenance issues.
Part Number: 3DVG300000
Or
Becker Liquid filled 0-30” Hg Vacuum Gauge with 2½” face, ¼” center back mount. Used as a
visual indicator for maintenance issues.
Part Number: ADG00001
Check Valve Assembly complete with 2” check valve and all parts necessary to connect to pump
and vacuum or pressure gauge. Eliminates backward pump rotation to protect vanes.
Part Number: 3/3100140CKVLVE
Becker External Canister Filter. Oversized lip style in line canister filter with filter element that
mounts easily on to the Becker Check Valve Assembly. Eliminates the need for removing covers on
the pump and greatly reduces filter change time.
Part Number: 74000207000
